What do you think about direct editing, particularly move face? When do you use it? What is your rule of thumb? What is the facepalm moment you had seen.
DONT
→ Dont use moveface to reduce or increase the boss height that you created 50 features before
→ Dont use moveface to move and offset surface…
→ Dont use moveface/deleteface to remove an unwanted hole…
DO
→ Do use MoveFace to create cosmetic gap while working on master model
A lot of time, I will end up using MoveFace because of how the part is modelled

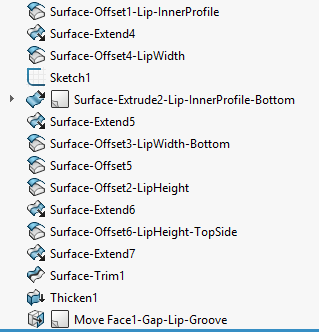

For example, when modelling a tongue and groove of a complex profile using surfacing, my personal preference is to model them as 0 gap and then use Move Face to create the all around gap for part tolerance.
The reason is because if i were to model them with tolerance when using offset surface, if the tolerance need to be changed,
i will need to edit multiple offset surface feature to change them… and a lot of time, one or two feature will be missed
Move face in SW is a tough one. Sometimes the feature tree is too fragile for changes. Sometimes the faces that need to be moved were created by multiple features.
Move face is most appropriate for imported stuff. It’s not real “direct edit” because it leaves a history based trail of features that require rebuilding.
The only time I ever used it was to change the thickness of two SM parts in a linear pattern. Sleazy, yeaaaaahhhhh…but what are the alternatives? Skip pattern instances, add a plane, derived sketch, and Base-Flange. Naw.
I’ve decided that CAD best practices are just that; best practices. There ARE exceptions.
I had seen people, even myself used move face just because changing a feature will break 20+ other features…
With function like view Parent & Child reference and commenting on critical feature/model intent, I find myself to use moveface less frequently
I had actually came across someone years ago that is a huge fans of MoveFace…
He used moveface to move and extrude, or extrude on a hole to fill a hole..
His argument is that with this “method”, he can revert the changes more easily…
But… the problem is… we have a PDM and change control and we can always revert to previous revision/iteration if needed…
In the end i had gave up on fixing his model and the feature tree had grow so large that rebuilding it take ages.
This is one of my favorites, when it comes to adjusting some corners after i.e. a thicken feature or when working with derived parts.
Also amazing to fix imported parts with this. One of my favorite features after I discovered it.
I honestly do not use it, especially for sheet metal components, which is what I typically deal with. I see it as adding a feature to repair an existing feature. I would prefer to simply correct the existing feature, keep things neat and tidy. However, depending on the type of work, I can see the benefits and time-savings of using Move Face.
I use it, but it all depends on the the task that needs to be done. I work with imported geometry a lot, if I need to adjust the diameter of five holes of varying depths why do five cuts when I can offset the faces in one step? Or the dreaded cut that won’t work due to a geometry condition (if you know there is a “condition” at least show me where it is). A slight face offset of .001 or .002 makes it work.
But I’m a mold designer, we do everything different.
I love MoveFace.. It’s principle benefit is that (in a simple offset/rotate) the face id remains the same.
Here’s a typical use case for me..
I have a nominally sized panel, and use move face to create the fit tolerances.
Here I have different tolerances for the width and height - I think it’s a lot clearer than using equations, especially if you’re running multiple configurations where there is no nice way to view/edit equations across configs.
It’s really nice how you can select multiple faces in one feature.
On other occasions I want to create a scribe allowance for on site fitting (add material).
Using move face I can simply add another move face feature and do both whilst having the ability to turn them on or off independently.
This is a really trivial example but useful to me none the less.
Move Face also has more advanced uses such as the up to body end constraint, it’s an incredibly powerful tool, but yes open to abuse.
Interesting! This gives me an idea. We have machinery platforms that have to be machined flat from stock. So say we start with a weldment with a 1/2" thick plate on top, we’d machine 1/16" off. Previously, I’d been using a cut extrude, but I think a move face would be a viable alternative.
In the case of tolerances, I can see where this could be extremely useful (as you point out). I’m about to go discuss it with a coworker and see what he thinks. It may be a good, clean way to keep track and avoid interferences. It seems like there would be a good clean way to do this out of the box in SW, but then again, it’s not a an easy thing to implement…
..for me, move/offset is useful mainly because I need to tweak something later, which would take too long using the feature tree (that is, hack and whack to get it released)… for instance,.. for 3D Printing.. or adding more gap for fit, where additional layer material buildup occurs.
otherwise,.. I’ve used it for odd workarounds where, I need to move surfaces, for situations (where we surfacing users) do NOT have an easy way to Contract or Extend Negative.
I use Move Face in a revision to a Weldment. It avoids errors, and this item will be fabricated uniquely one time.
I have a Structural Member feature with over 15 groups. Due to customer input revision, this vertical piece needs to reach further than before. Especially if it is part of a chained contiguous group (box bracket stand), redefining it requires recreating the whole group after adding to the sketch. Furthermore, (all of) the hole wizards defined upon that face now have lost their face because it is a new face now. If I were to simply add a new piece at the end of the other, and Combine Bodies, then a Weldment length callout will erroneously show exactly twice the intended length - a known 2018 SP5 bug which I had reported. A structural member piece which has been lengthened by Move Face will callout an accurate cut list length.
So instead of all that mess, I use Move Face on weldments when a piece needs extended. Most other times, editing the sketch and defining new or redefining old structural member pieces can be done without the use of Move Face.
Edit to add:
I can also avoid hole wizard face errors when removing structural member pieces by a solid body equivalent to Move Face: Delete Body. A Delete Body feature beneath the hole wizard will proceed quickly without generating errors to fix by removing a parent face from the structural member feature. Rarely with angled gussets, I will generate a third base leg of the triangle to automatically trim its angled end, and then delete the base leg body from the part. Deleting Bodies has a similar ability to confuse the feature tree order as Move Face does, but is also conditionally used to apply nearly-finished edits to the component which will not be reused in perpetuity.
I use move face to get flat pattern. With surface flatten.
Always working with import files. Some are turbine blades with funny twist. Good luck getting it to sheetmetal.
I’ll move one of the face, inside or outside 1/2 way. K=0.5. Delete all other face. Flatten, thicken.
The problem arises with CAD jockeys who are lazy or give up too easily.
If the feature can be adjusted, that is how the job should be done. If not, best to lobotomize the model rather than keep a feature tree that causes the model to self-destruct.
Some one like to go to the clubs in the 90’s and early 2000s!
Miss those good ole days!
Like Matt mentioned Move Face(s) depends on the type of geometry your are dealing with and how your software manages the change.
In SW it is added to your history tree. I, personally, don’t like to have a mixture of move face with a sketch driven solid. Mainly because I would naturally go to the sketch to make the change. If there is an additional feature (move face) somewhere else in the tree then it introduces risk into your design- risk of incorrect data.
NX allows for direct edits as well and it applies to the feature tree like SW.
Creo, not to sure, but I think you have the same process or ship to the direct editing module all together.
Solid Edge allows you the ability to do different things. You could apply the change using synchronous technology or add to history tree.
