I make custom parts for Trucks, but I often start from previous versions. I wish there was a way to leave a post it notes on a model. It would be so handy for reminders or highlighting critical details. I do recall seeing an engineer’s note somewhere, but don’t recall it being the right tool I am dreaming of here. Have any of you found anyway to leave your future self-detail notes on models.
You can add comments to individual features or use the Design Journal for all sorts of info.
3 Likes
you can comment on the first feature in the tree (from righ mouse button menu) and you can also make it appear when you open the file
1 Like

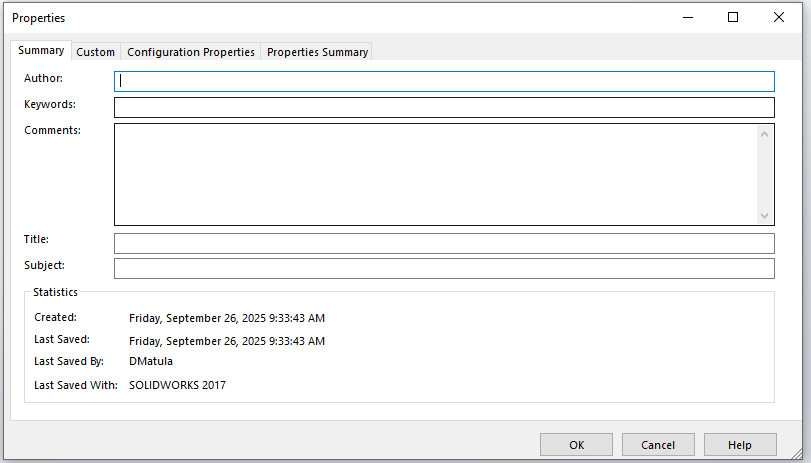

I use the summary area to leave notes, like where the file was downloaded from.
You can use this.
I tried using the design binder to update a word document for some of this but either I lost the part or the design binder file in earlier versions and just kind of gave up using that because I would think I added info there and when I would get back to the part it would not be there.
1 Like

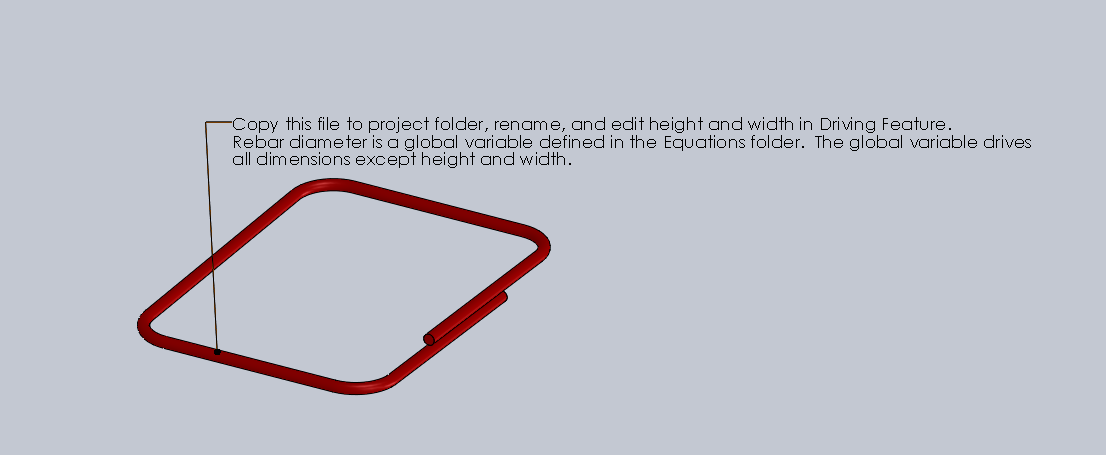

This is what we do to our parts where we want to leave notes for future reference.
2 Likes
Nope.
Inventor Engineer Note.
It leave yellow post-it all over the assembly.

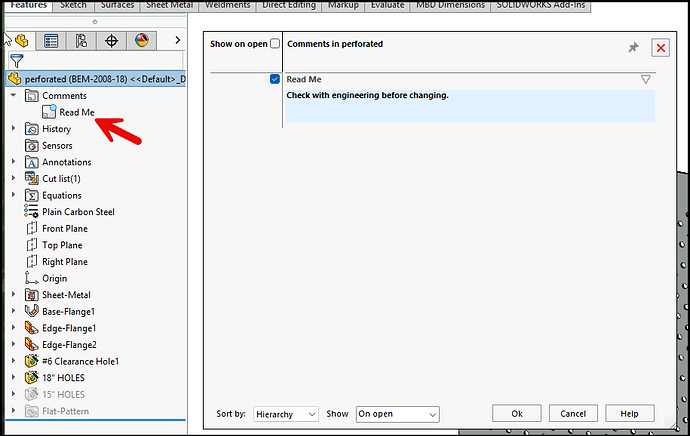

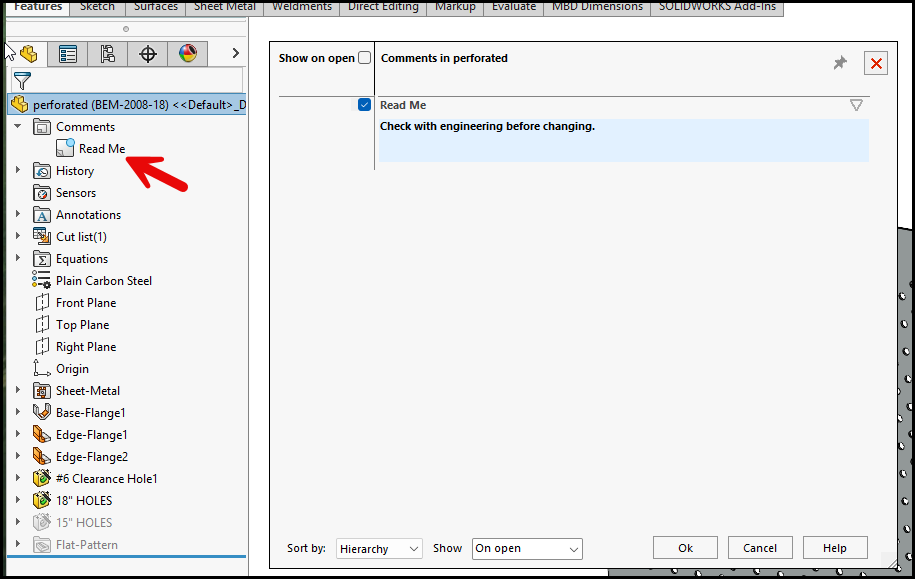

As mentioned, Comment on top of tree and set to open comment on opening file:

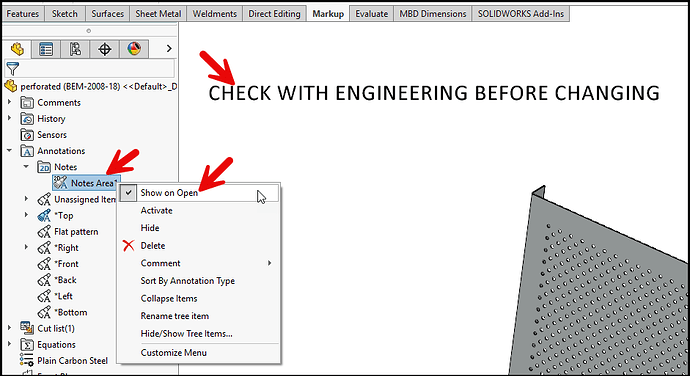

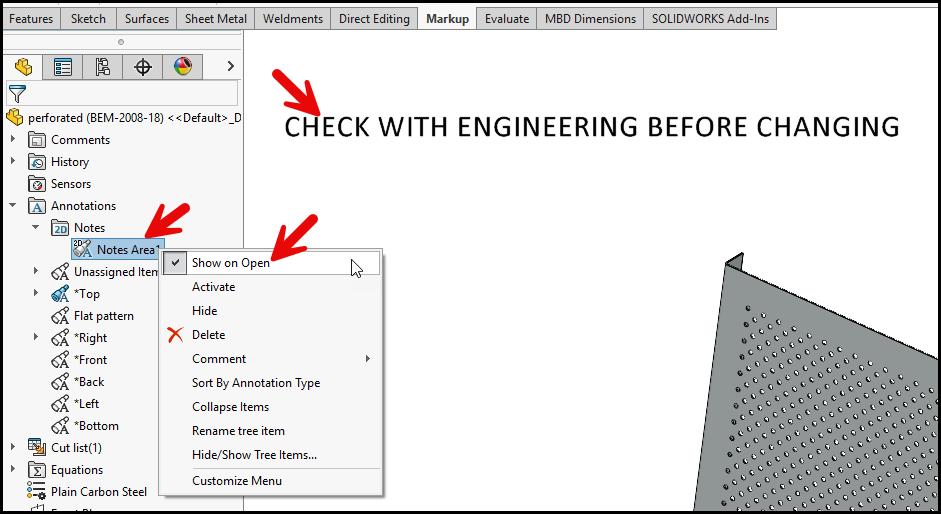

Or you could insert a “Notes Area” under Annotations. Then set it to Show on Open. This way is more finicky though and you have to make sure “View” top level annotation is on.
1 Like
