What are you machining on your cnc today?

Manufacturing CAM
1

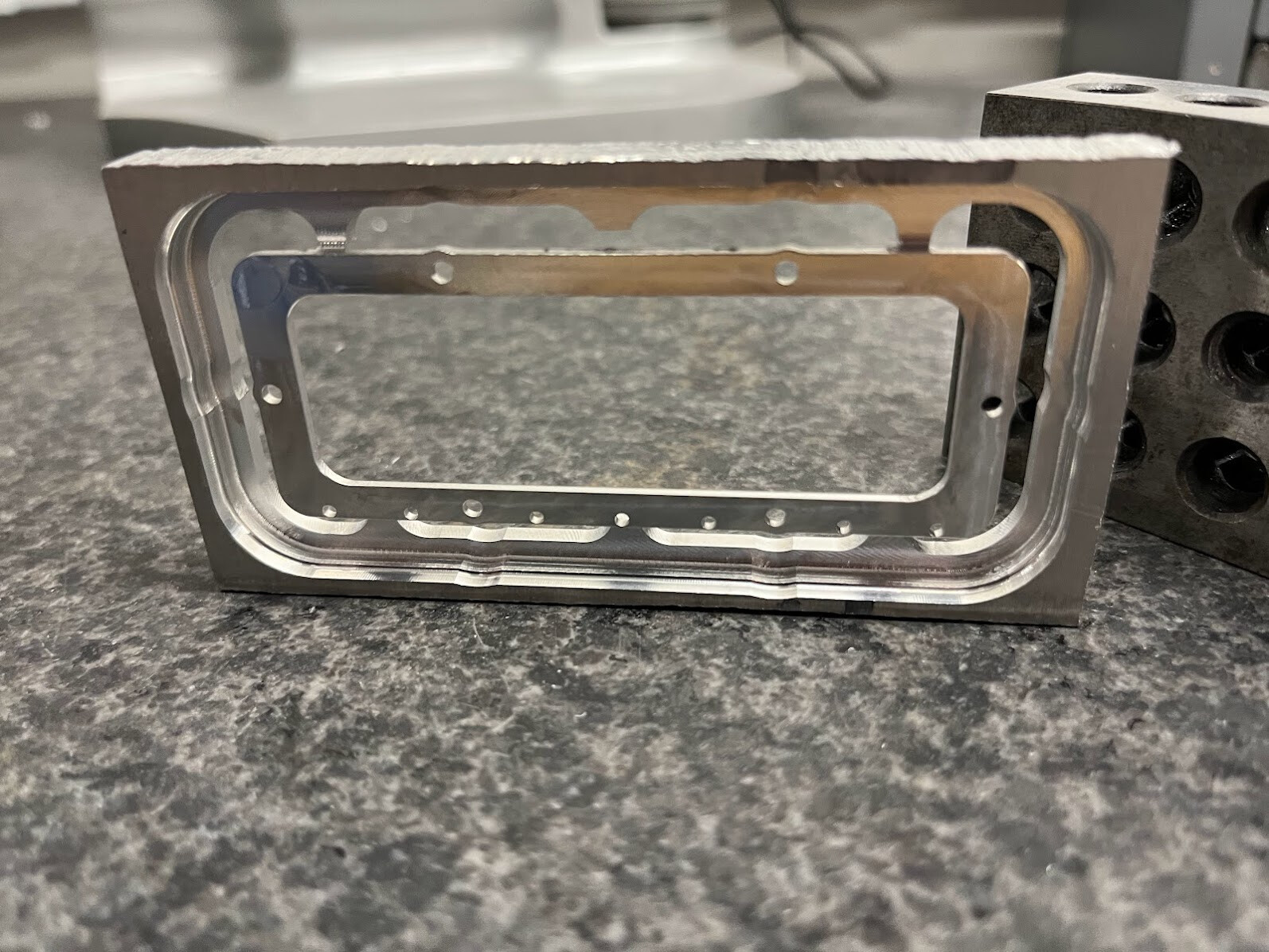

A housing and a cooling plate for the semi conductor insdustry

Used AlphaCam part created in SW.

316 stainless

2

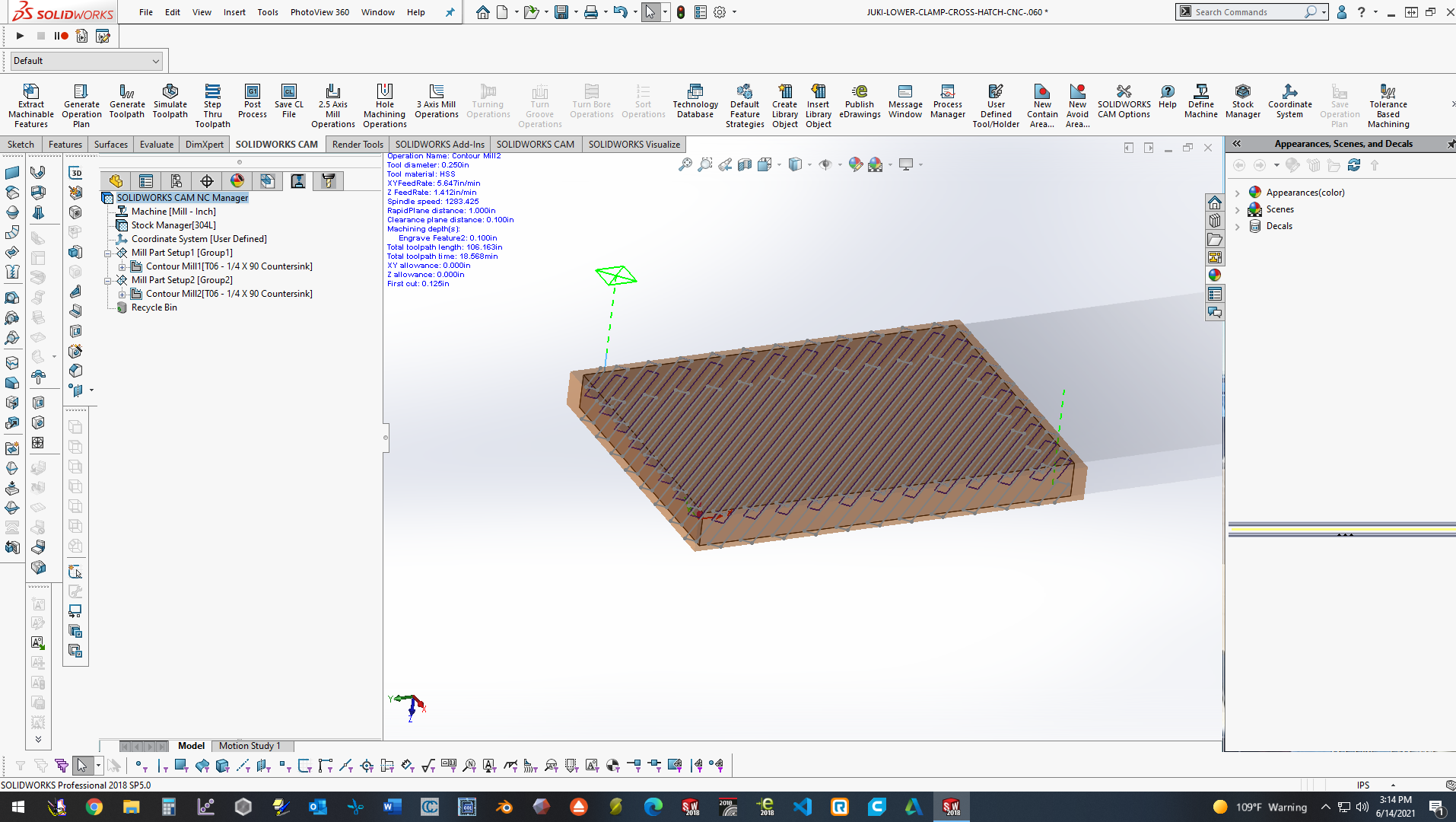

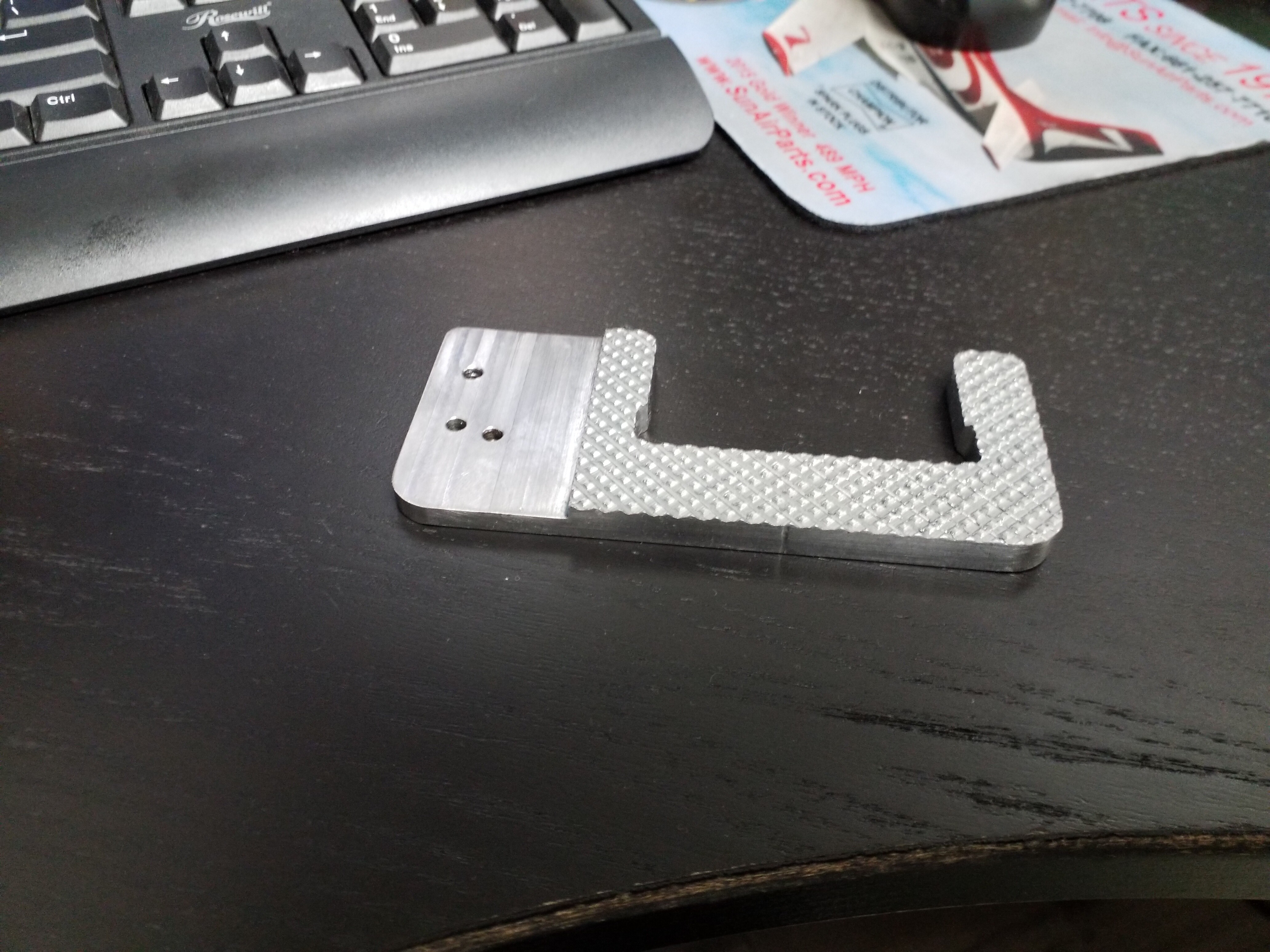

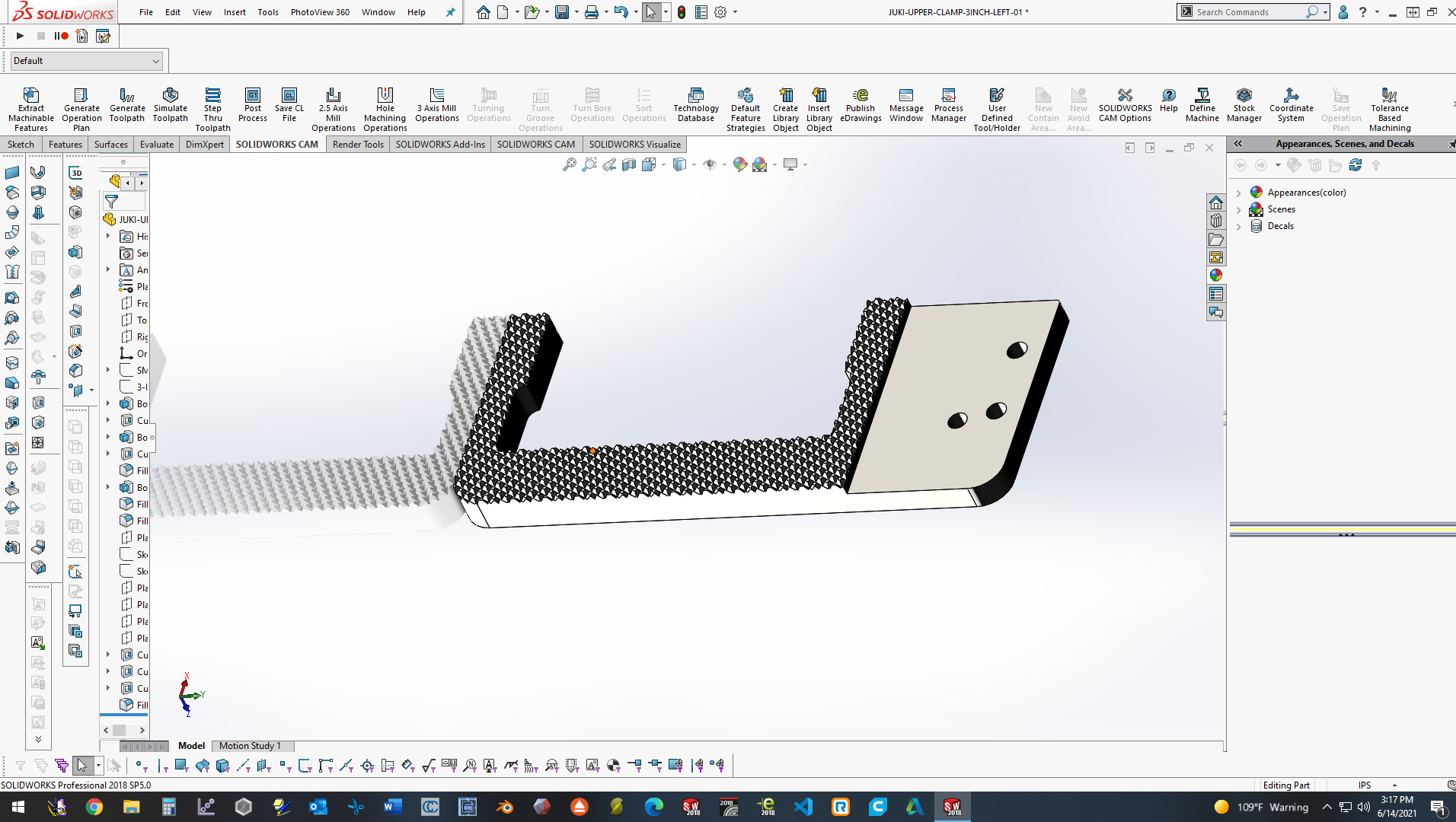

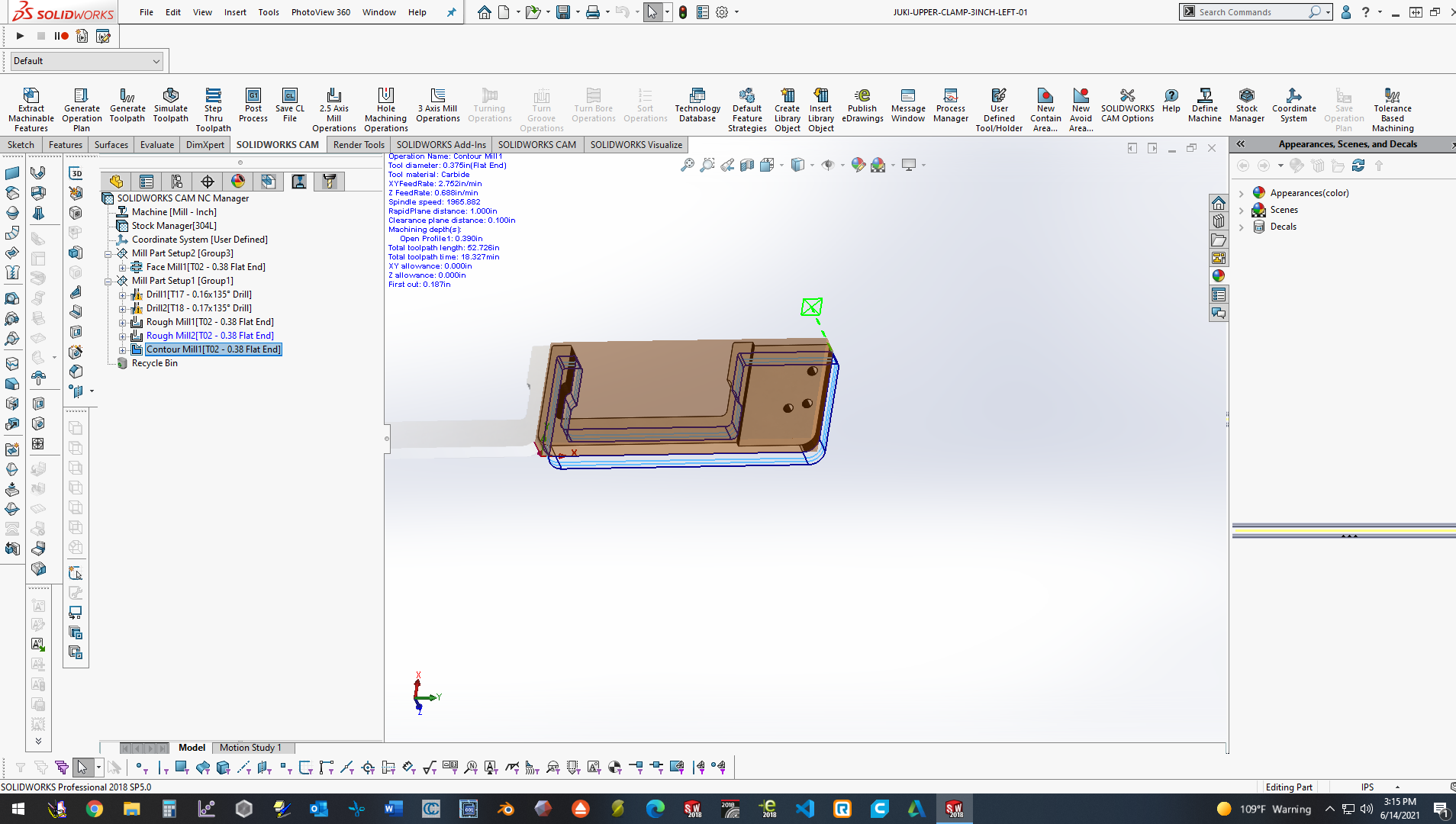

A clamp for our CNC belt rewebbing machine.

304l material, used a custom tool to make the knurll

3

It holds a transducer. I have the good fortune of mostly cutting parts I designed, so any problems are my fault. The electrical guy I am working with on this project is saying scary things, like 200V at 20 MHz
IMG-4313 r.jpg
IMG-4314 r.jpg
IMG-4316 r.jpg
All the pics originally showed up upside down. The last two still show up upside down even though I have saved versions with the pictures flipped.

4

Just come back to him with “Oh, yeah! Well how about 1.21 GW!!”

5

Working on my picture frame game, which needs it.

6

We use our CNC router to cut custom shims, among other things.



https://youtu.be/kUJUMHRqPiI
