Hi all,

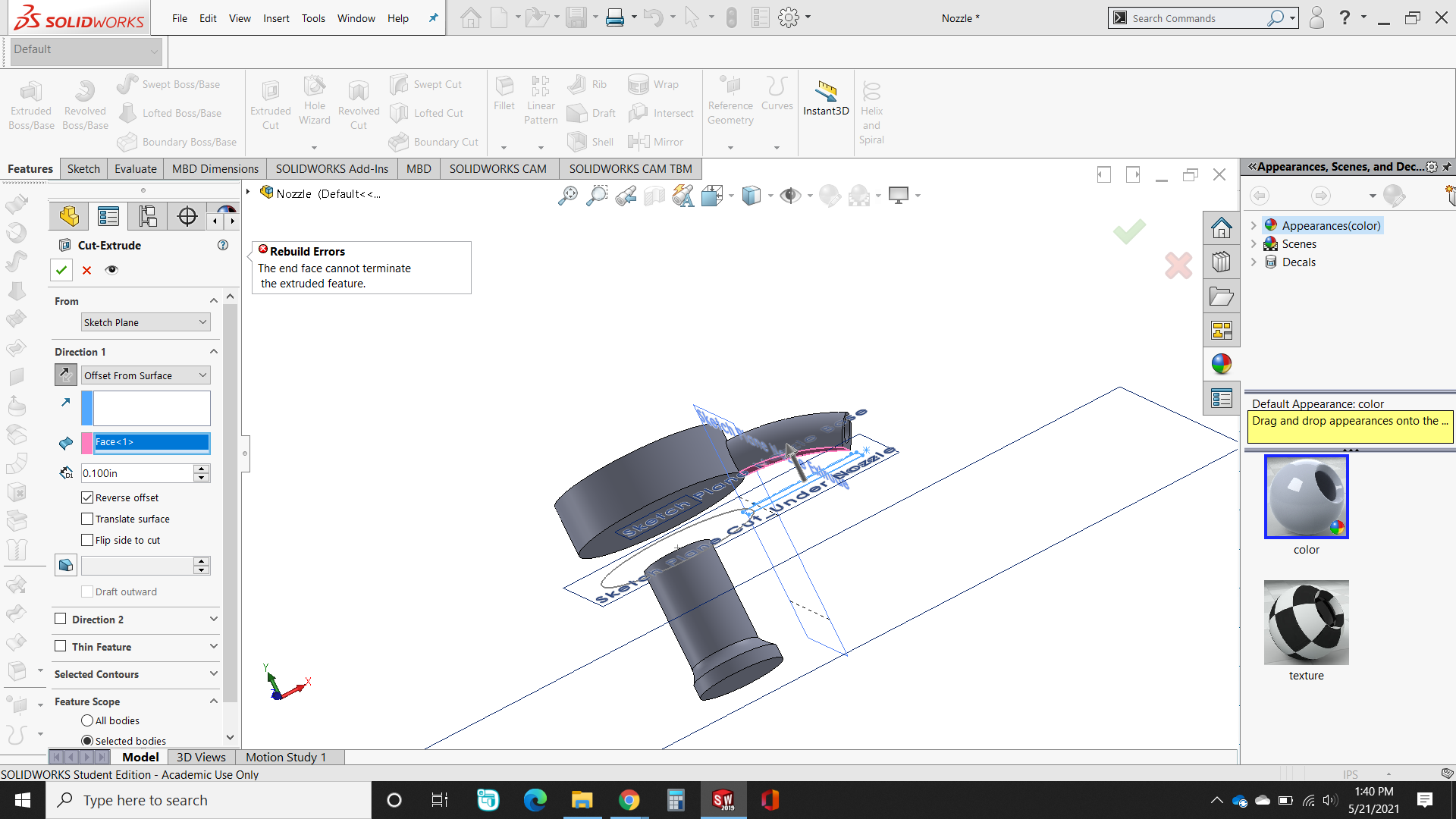

In the attached part file, I’m trying to…well, I’m trying to create the feature that I took a screenshot of in the attached screenshot, haha.
The problem is that I’m having a hard time interpreting the error message that’s also shown in the screenshot.
Anyone have any ideas as to what the problem might be?
All help is appreciated!
Thanks in advance,
Nozzle.SLDPRT (236 KB)
Activate the “Translate Surface” box.
2021-05-21 13_54_27.jpg
The problem is that the surface you’re cutting up to (blue) doesn’t cover the entire sketch (orange) when projected into the sketch plane. If it were a simple surface that would be ok (extrude/revolve) but it’s a sweep, so it can’t really be extended. Since you just swept along an arc, you could have revolved it and saved yourself some grief.
The Translate From Surface doesn’t really give you the right geometry, which may or may not matter.
If you’re trying to put a groove in the bottom of the sweep, it might be easiest to just sketch it into the SKETCH_Extrude_Ac.
