Simple Hole sketch dimensions in Equation Manager

Catia and 3DX
1

Do you use Simple Hole feature?

  • Never. We always use HoleWizard feature to create even a Simple Hole
  • Yes. Whenever we require to create it.
  • In some special cases. (Please explain if possible).
0 voters

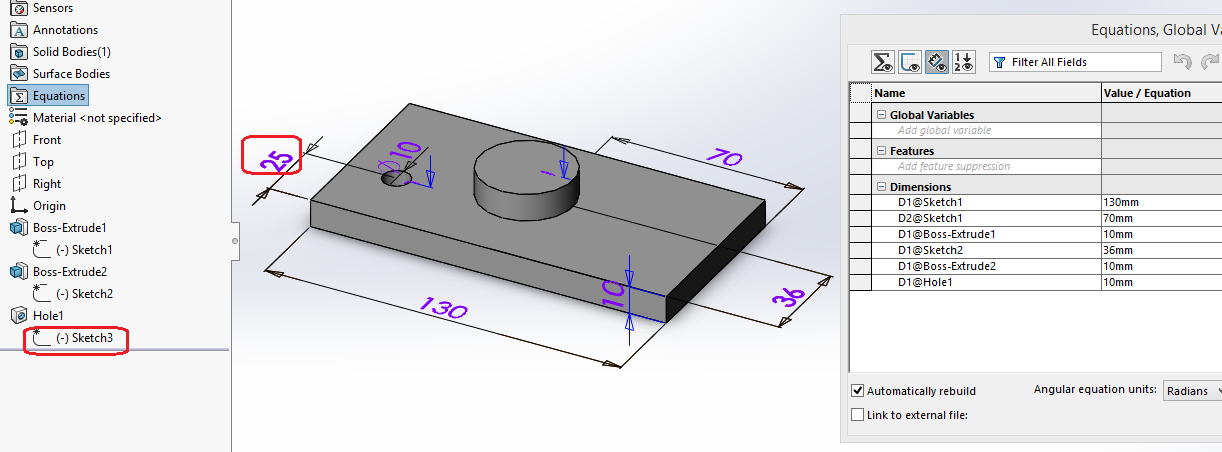

I created a simple hole on a face of a block. I then created a dimension from an edge of the face to the center of the simple hole.

simple hole 1.png
But the dimensions does not show in the Equation Manager.

simple hole 2.png
Is this normal behavior? I am not a regular user of SolidWorks, so am I missing something?

Also, do you use simple hole feature or you just use Hole Wizard to create even a simple hole? Just curious to know!

Thanks in advance for your responses.

  • NirVidP
2

I use Hole Wizard for typical standard size holes, mostly for fastening hardware. And cut extrude holes for everything else. I never use the simple hole…seems like there were limitations at one time…maybe no longer though.
