Has anyone else experienced this specific and strange issue I am having with inconsistencies in this setting.
I have been using this setting since literally forever. But lately, I have found that some “Save As: PDF” output files are a bit…. ODD…
02 (pdf Output).png
You will see the faded and strange looking view on the left. (FYI, this prints to paper quite terribly..)
It results from that previously displayed setting not seeming to work correctly.
01 (sldrw Creation).png

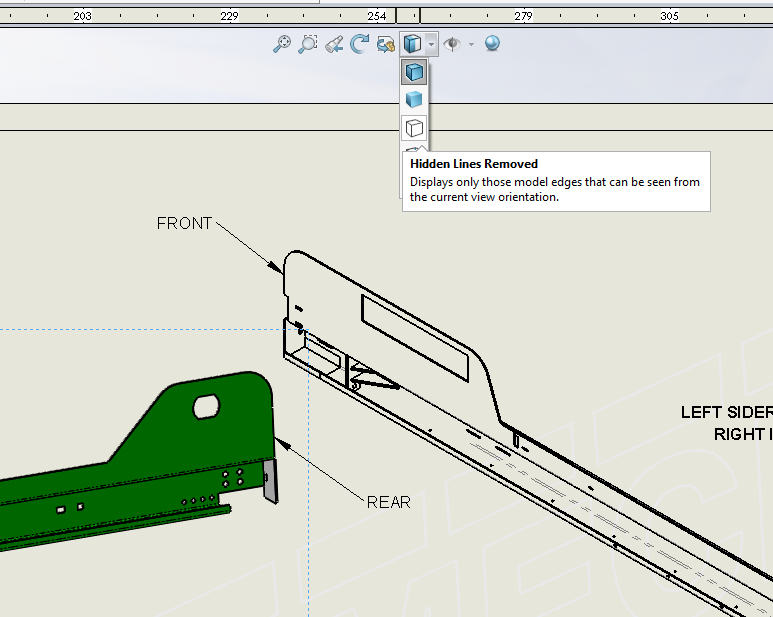

You can clearly see the view on the left did not correctly “Hide Ends”.
To rectify, I do, as follows:..
Change view to shaded..

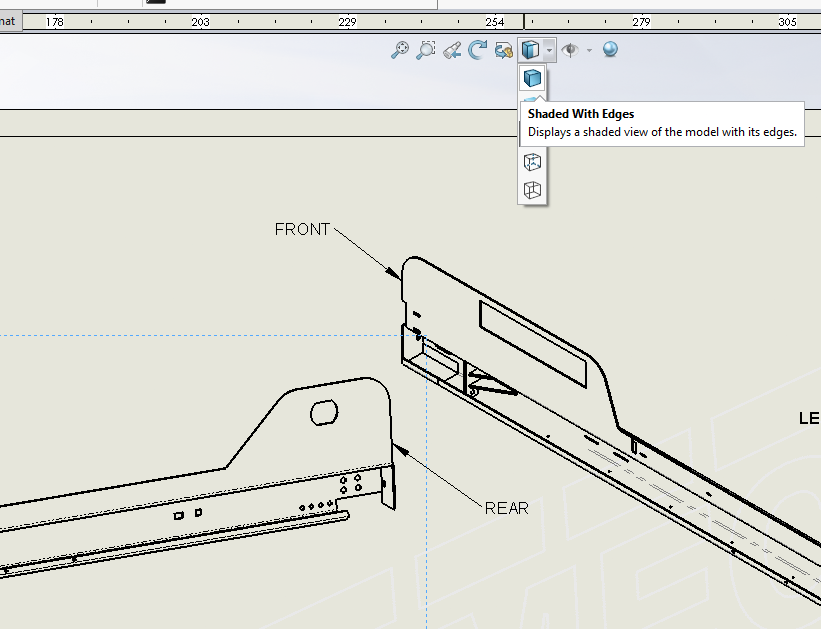

03 (Shaded Change).png
Immediately revert view to HLR..
04 (Revert to HLR).png
You can now see the correct display of “Hide Ends” has now applied.
The resulting PDF output is now also corrected. As visible below..
This now prints out and displays on paper very well too.
This is a new failing.
I can only assume this is directly related to my most recent update to SP5.0 of 2022. I was running 2022 SP0 without this issue.
(It is frustrating as it seems that whenever I update the software I get fresh new problems that did not exist previously.)
And now, I need to go thru every SLDDRW file I create and check every view, on every page, and apply this fix before I can save any PDF output files.
(This is a laborious and tedious additional process of steps added to my existing workflow that does NOT save me time , nor add any value to my process.)
I have submitted this information, just this morning, to my reseller/helpdesk and I do suppose it is possible may hear back from them before the year is out.
I do wonder if anyone else here has seen or experienced this.
I know it sounds ridiculous but have you tried rolling back to SP4 or even SP0 to see if the issue persists? Have you tried toggling enhanced graphics to see if that could be causing it? There’s a few things that could cause graphic issues as such. Check if you have the right graphic card driver too.
Agreed. Many things cause graphics issues. I’ve experienced a plethora of them over the years with different versions, machines, OS’es, etc.
That said, this one is new.
I have this turned off since it came about as a gitchy boggle of bollocks to impress themselves with. We all know it doesn’t work. So, no. Never used it.
I went directly from SP0 - to - SP5.0.. Is rollback even possible.. And how would I do that..?
Good call.. Turns out, I am running an older driver. I may update..
It has been a while since I set up this machine.
As SPerman said, enhanced graphics has mitigated results for people. For me, it does wonders. For some of my co-workers, with a slightly different computer then mine, it causes issues. IMO, if your computer is less then 2 years old it works well and if it’s older then 5 it’ll most likely cause issues.
That being said, if you’d like to rollback, simply uninstall and reinstall to the desired SP. File are version bound but not SP bound, so fortunately if you encounter issues after upgrading you can rollback.
Hope things get better. Hit back here if you still face issues, I’ll try and help
Cheers Glenn. But I gotta be honest and say, I went thru a bunch of hoops to get back on subs so I could get to SP5 where they fixed one of their more genius (incredibly stupid) enhancements they made with a selection of “temporary axis upon hover over cylindrical faces”.
They gave me a button to disable it..
Temporary Axis.png
This used to annoy me relentlessly every time I stumbled upon a cylinder for more than the blink of an eye, my system would hang while it generated this useless and unwanted “feature”. (TBH, I cannot even begin to imagine why anyone thought this was a good idea..!? .. Meh.)
So, I honestly cannot go backwards to a SP that would remove this.
