In Solid Edge there is a direct editing feature called “Delete Rounds” and it works very well IMO. I used it a lot to prep vendor or customer models for other direct edits where all the round faces made a mess. After the direct edits I would just put the rounds back in so they flow the right direction.
I searched “Solidworks delete rounds” and found this help page: https://help.solidworks.com/2019/english/SolidWorks/sldworks/t_Changing_or_Removing_Fillets.htm?verRedirect=1

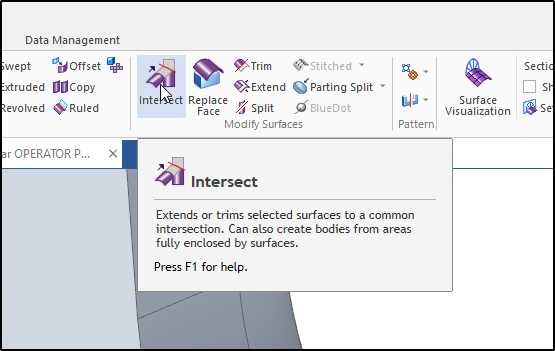

But it doesn’t even let me select the round faces of imported solid. Note these are not crazy surface bodies, I’m working on a clean, water tight parasolid body. Since I’m doing a revision to a part that had already gone through this process in Solid Edge I imported the solid body into SW. It’s a good, water tight import, just need to edit it and starting from scratch is much worse option. Instead of just doing the direct edits in Edge and reimport to SW I thought I should try to learn how to do it in SW. After trying for a while I’m left with deleting the faces of the round and then stitching extended faces >>> . I go to the SE model (which started as in import from customer Designer) and the rounds simply delete.
If anyone knows how to do this in SW I would be glad to hear about it.
Attachments are gifs of what I’m trying. On in SW the other in Edge.
I typically use Delete Face for doing this. As long as the “Delete and Patch” option is selected, you shouldn’t have to stitch anything. Sometimes the geometry is too complex, but 90% percent of the time this works fine for me.
Oh, I should have mentioned SW cannot patch it. If the two rounds didn’t converge there near the top I think delete face and patch would work. I’ve tried selecting about every set of rounds I can think of. It just cannot extend that flat side face up to the top like SE does when using delete face with heal/patch. Just a hunch, but I think SE’s Delete Rounds is just Delete Face with a selection filter applied. But there could be more going on in the back ground as it feels more robust than delete face and heal.
For this case I just deleted everything then kinda reverse engineered that little dimple that I needed to keep. Cut it in with a couple of drafted cut extrudes and applied rounds.
I’d still like to see better ways of deleting rounds with heal/patch in SW as often times I’m working with shapes that are not easy to model back in with normal parametric features. In those cases I rely on boolean ops on multi-body.
For some reason SW cannot patch when I delete that top radius like you showed. Possibly due to 10deg draft on the sides, maybe because the rounds were not created in SW. I don’t know. The delete & fill produces some rounded surface.
I like that trick they show, I keep forgetting it’s available. We learned quick to keep feature works turned off as it doesn’t do well with any of our SE2019 models. Nevertheless I turned it back on to try this both ways. It doesn’t go like the demo. I need to keep it in mind when models come in from vendors.
I would if I could. The screen shots are probably pushing the limits. In this case the base shape to create the dimple is a set of stacked boxes with drafts and fillets so not bad to recreate. Sometimes that’s not an option so other tools are needed. I wasn’t looking so much for a solution specific to this one isolated case, rather looking to learn the various tools to try in the new system. Which is what is happening here, so very cool and thanks to all.
This
I end up having to do it this way alot with imported geometry usually to be able to add draft to a feature. As stated earlier, if the face consumes the radius it probably won’t work. I have gone so far as to cut away the area and recreate it. Even that doesn’t always work on swoopy parts.
Yes, this applies to any parametric software. As stated earlier, I’ve tried about every order of delete faces in SW. In Solid Edge the Delete Rounds just works in almost any order. I was checking to see if there’s some tool/method in SW that I’m missing. Also as seen in the gifs the face is not consumed by the rounds, I don’t know how that got started. The face is there and SE has no problem extending it when the rounds are deleted.
Is that in the FilletXpert? I cannot figure out how to select anything, just says “Please select only face belonging to a fillet or a face with filleted edge(s).”
