Hole Callout - C'Sink angle precision

SOLIDWORKS How To Questions
1

I’m spending some time housekeeping and fixing some annoyances with our setup.

How do I set the default precision on drawings for Hole Wizard Countersunk Holes?

The model is set to 0 decimal places and the drawing template is set to 0 places.

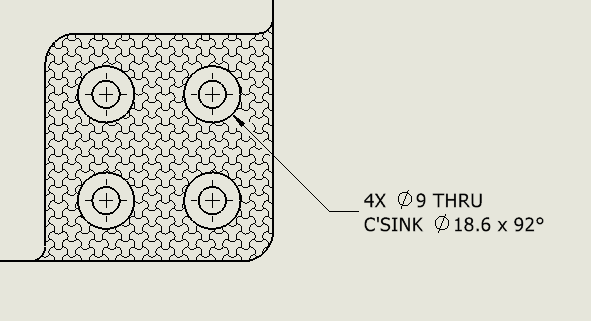

The “Insert, Hole Callout” dimension always comes in at 3 places, forcing a manual adjustment.

I’ve done a bit of searching and haven’t found a setting for this.
Has anyone found a way to set the precision?

SWX 2022 SP5, PDM Standard, not upgrading for a bit due to hardware requirements.

Thanks,

Ray

2

I haven’t found a way to control this.

3

In the model, at the bottom section of the hole wizard properties panel are the tolerance settings
On the drawing, the precision is controlled by the document/template settings:

4

Thanks, SPerman, that’s what I’ve found.

Thank you, DavidWS, but that had no effect on the drawing dimension.

5

This is broken as far back as SW2017.

BR10000387407 - Unable to control Hole callout angle precision using document settings. It follows the length dimension precision instead of angle precision

6

grumph

7

Not the answer I was hoping for.

Thank you all. I appreciate your input.

8

I ran into this same issue a while back! It looks like there isn’t a direct setting to change the default precision for Hole Wizard callouts.
