Design Tables not Populating and error message?

SOLIDWORKS SW General
1

Hi all,

It’s definitely a Monday as they say I have spent much of today messing with a sheet metal cover that the dimensions would not update correctly or be driven by a design table.

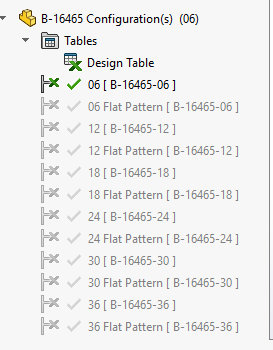

So, I remade the part file from scratch and manually added each configuration and a derived flat pattern for each. This place like to add design tables to their drawings to drive charted dimensions so I added a design table, and it appears correct until I click the screen then I get this:

Any Ideas on what is going on with this as I have never seen so many weird things as this is not my first go around with configurations but this one is definitely trying my patience…

Thanks in advance,

Regards,
Jim

2

Would it be possible for you to post the file?

3

Hi again,

Wish I could, but work doesn’t want anything out if you know what I mean.

Regards,
Jim

4

Hi all,

Well, it must be a glitch in 2020 SP5.0 as I deleted all the derived configurations and remade them as configurations and go figure it works as expected.
Regards,
Jim
