Change balloon to "No Lead"

SOLIDWORKS API
1

I’ve been looking around for a macro that changes a selected balloon with a lead to “No Lead”. But can not find any.
Does anyone have such a macro?

W2022 SP5

Thanks.

2

Try the codes from this post How To Change Arrow Style On Balloons

4 Likes
3

Having trouble getting your balloons to go over?

1 Like
4

Thanks @gupta9665
With a little googling and some modification to the macro in the page you suggested, the following macro does the job.
But it loops and hides all leaders of balloons attached to all views.
Is it possible to change it somehow that only the balloons attached to a selected view are changed?
Thanks again.

Dim swApp As SldWorks.SldWorks
Dim swDraw As SldWorks.DrawingDoc

Sub main()
    Dim swView As SldWorks.View
    Dim vAnnots As Variant
    Dim i As Integer
    Dim swAnn As SldWorks.Annotation
    Dim swNote As SldWorks.Note

    Set swApp = Application.SldWorks
    Set swDraw = swApp.ActiveDoc
    Set swView = swDraw.GetFirstView

    While Not swView Is Nothing
        vAnnots = swView.GetAnnotations
        If Not IsEmpty(vAnnots) Then
            For i = 0 To UBound(vAnnots)
                Set swAnn = vAnnots(i)
                If swAnn.GetType = swAnnotationType_e.swNote Then
                    Set swNote = swAnn.GetSpecificAnnotation
                    If swNote.IsBomBalloon() Then
                        swAnn.SetLeader3 swLeaderStyle_e.swNO_LEADER, swLeaderSide_e.swLS_SMART, False, False, False, False
                    End If
                End If
            Next
        End If
        Set swView = swView.GetNextView
    Wend

    swDraw.GraphicsRedraw2

End Sub
5

@josh thanks for stepping in.
I’m not too good in English and I’m not sure if I understand your question.
Let me explain my case:

I mostly do Sheet Metals. Because of a lot of problems, I don’t use multi body parts. I start with an empty assembly, and add virtual parts which would be welded or spot welded together.

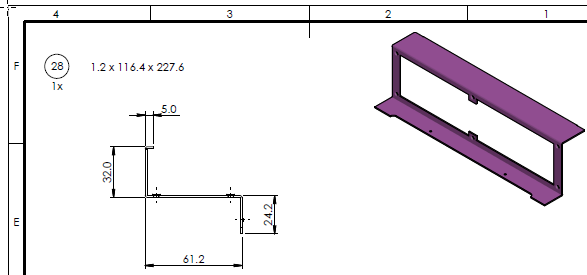

We have one drawing for each virtual part. At the top left, we add a balloon that shows the item number of the part in BOM, along with the count and a memo for the size of part’s flat pattern. Each time I add a balloon, I have to open it’s property sheet, scroll down and click More More Properties button, and in the new property sheet select No Leader from the list.
I was just trying to do the same with a macro.

444
444587×275 16 KB

1 Like
6

You can save a style in the drawing, and then when adding balloons, you can select that style to get the desired balloons.

Here are the updated codes

Dim swApp As SldWorks.SldWorks
Dim swDraw As SldWorks.DrawingDoc
Dim swSelMgr As SldWorks.SelectionMgr
Dim i As Integer
Dim swAnn As SldWorks.Annotation
Dim swNote As SldWorks.Note
Dim nSelCount As Long

Sub Main()

Set swApp = Application.SldWorks
Set swDraw = swApp.ActiveDoc
Set swSelMgr = swDraw.SelectionManager
nSelCount = swSelMgr.GetSelectedObjectCount2(-1)

If nSelCount = 0 Then Exit Sub

For i = 0 To nSelCount - 1

  Set swNote = swSelMgr.GetSelectedObject6(i + 1, -1)
    If swNote.IsBomBalloon() Then
      Set swAnn = swNote.GetAnnotation
      swAnn.SetLeader3 swLeaderStyle_e.swNO_LEADER, swLeaderSide_e.swLS_SMART, False, False, False, False
    End If

Next

swDraw.GraphicsRedraw2

End Sub
2 Likes
7

Million thanks

8

@Tera sorry… It’s a little bit of a pun in English.

There’s an idiom “going over like a lead balloon”, as in Pb, the metal. It means something like that an idea/concept/situation is not well accepted. That meaning is not so important for the pun.

The main thing is that both “lead” and “lead” are spelled the same.

Just some extra info, in English we refer to the arrow attached to the balloon as a “leader” rather than a “lead”. Of course, your English is much better than my [everything except English], so I probably have no business giving you tips. :smiley:

2 Likes
9

@josh I had to back to the top of the thread & reread the first couple of post to get what you were referring to! Now I can’t stop :joy: Thinking about Tera trying to the “lead” out of his balloons so they “go over”!

And I’ll agree to this statement!

10

I had to go back to my first post above to understand what you guys are talking about. That “lead” was a mistype :smile: and I don’t know why I missed “er” at the end. And interestingly, not only in the title, but in the main post too. :sweat_smile:

Well, at least it ended to learn something new in English. @josh Good for me that I learnt what “going over like a lead balloon” means. :man_bowing:
