Cannot combine multiple geometric tolerances into a single frame in SW 2024

General
1

I’m not sure what I’m missing, but I don’t have the capability of combining multiple Geometric Tolerances into a single frame either while creating or after-the-fact (combining to separate) -SW doesn’t give me the Composite Frame option in the FM etc.

If I’m creating a new Geometric tolerance, I don’t have the ability in the interface to add an addition GT in the dialog. If I have to separate GT I want to combine, I select them, but on the RMB or in the GT FM, I dont’ have the option to composite or combine them?

Untitled

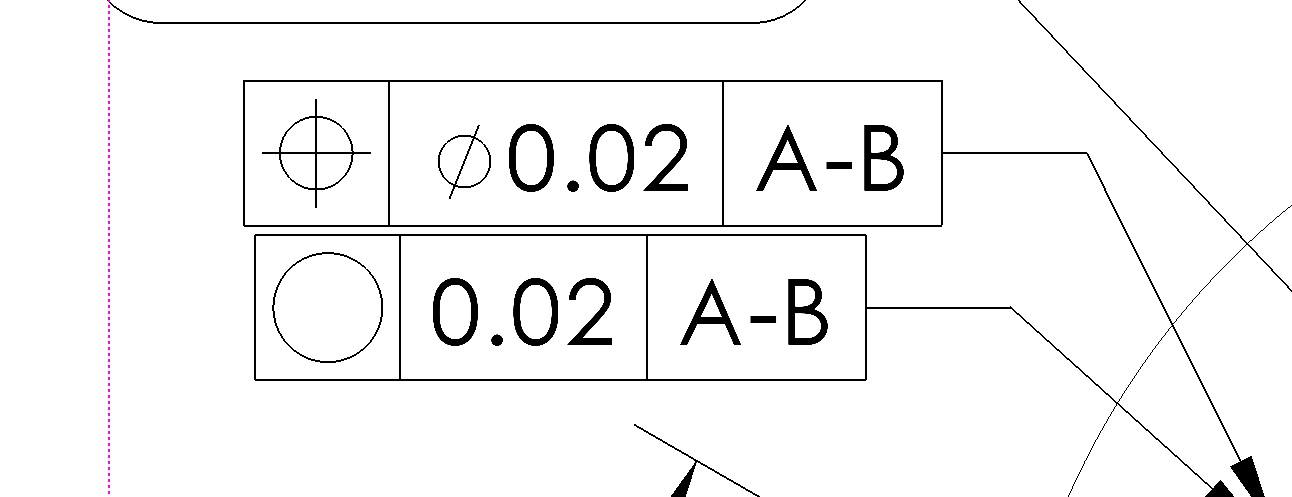

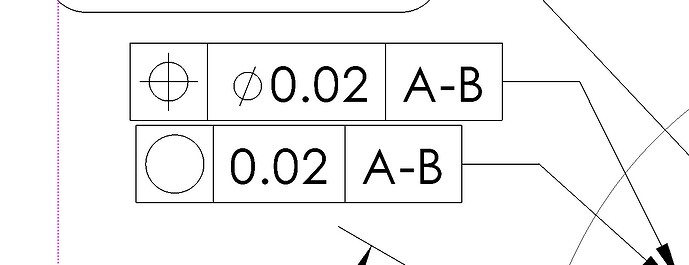

Untitled1292×497 60.6 KB

2

While creating you should be able to use the plus symbols to add new frames above or below:

image669×388 1.74 KB

After creating you can double click to access the plus symbols.

It has worked like this since SW2022 when they redesigned the GD & T workflow.

3

Thanks Jim,

Got it.

Mark
