AI vs. SolidWorks API: The Ultimate Macro Challenge 🤖

SOLIDWORKS API
1

The thread “Trying, or attempting, to use ChatGPT to craft macros” reached the point of a challenge—I’ve moved it to a separate thread.
The challenge was proposed by josh

For a multibody part, analyze overlapping volumes. Bodies that are 50% or more by volume contained within another body should be colored blue. The body that contains the other body should be red. If two bodies mutually contain over 50% of each other, color them purple.

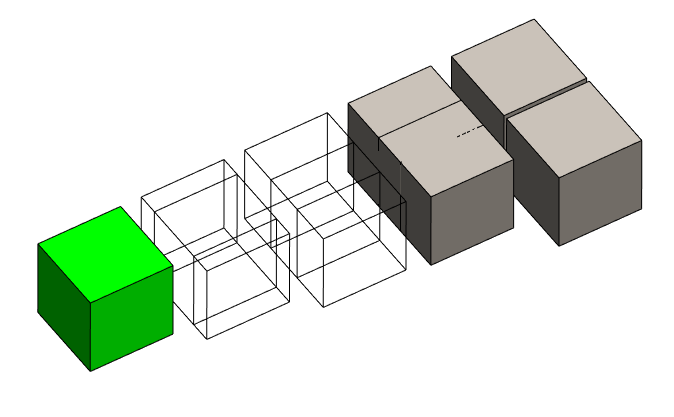

My version of the part for testing:
JoshMultibodyOverlapping2.SLDPRT (111.4 KB)
Can you describe your experience? I’ll start first:

2

I don’t correct the AI ​​or give any hints, I just write to it about the specific lines where I have errors or describe what’s not working properly.
Prompt for Gemini in its original form with the addition at the beginning of what language and what software:

Me:

VBA Solidworks. For a multibody part, analyze overlapping volumes. Bodies that are 50% or more by volume contained within another body should be colored blue. The body that contains the other body should be red. If two bodies mutually contain over 50% of each other, color them purple.

Gemini:

To achieve this in SolidWorks VBA, we need to use the IBody2 and IModeler interfaces. Since SolidWorks doesn’t have a single “GetOverlappingVolume” function, the standard approach is to use Boolean Intersections.

We will temporarily clone the bodies, perform an intersection to find the common volume, and compare that to the original volumes to determine the percentages.

Logic Workflow

  1. Iterate through all bodies in the part.
  2. Compare each body against every other body (nested loop).
  3. Intersect Body A and Body B to create a temporary “Intersection Body.”
  4. Calculate Ratios:
  • Ratio_A = \frac{V_{intersection}}{V_A}
  • Ratio_B = \frac{V_{intersection}}{V_B}
  1. Apply Colors based on your logic:
  • Both \ge 50\%: Purple
  • Only A \ge 50\%: A is Blue, B is Red.
  • Only B \ge 50\%: B is Blue, A is Red.
 Option Explicit

Sub AnalyzeOverlappingVolumes()
    Dim swApp As SldWorks.SldWorks
    Dim swModel As SldWorks.ModelDoc2
    Dim swPart As SldWorks.PartDoc
    Dim vBodies As Variant
    Dim i As Long, j As Long
    Dim bodyA As SldWorks.Body2, bodyB As SldWorks.Body2
    Dim copyA As SldWorks.Body2, copyB As SldWorks.Body2
    Dim intersectBody As SldWorks.Body2
    Dim volA As Double, volB As Double, volInt As Double
    Dim ratioA As Double, ratioB As Double

    Set swApp = Application.SldWorks
    Set swModel = swApp.ActiveDoc

    If swModel Is Nothing Or swModel.GetType <> swDocPART Then
        MsgBox "Please open a multibody part."
        Exit Sub
    End If

    Set swPart = swModel
    vBodies = swPart.GetBodies2(swAllBodies, False)

    If IsEmpty(vBodies) Then Exit Sub

    ' Loop through body pairs
    For i = 0 To UBound(vBodies) - 1
        For j = i + 1 To UBound(vBodies)
            Set bodyA = vBodies(i)
            Set bodyB = vBodies(j)

            volA = bodyA.GetVolume ' < ERORR - Object doesn 't support this property or method
            volB = bodyB.GetVolume

            ' Create temporary copies for Boolean operation
            Set copyA = bodyA.Copy
            Set copyB = bodyB.Copy

            ' Perform Intersection: 0 = Cut, 1 = Join, 2 = Intersect
            Dim errorRef As Long
            Dim vIntBodies As Variant
            vIntBodies = copyA.Operations2(2, copyB, errorRef) ' 2 is Intersection

            If Not IsEmpty(vIntBodies) Then
                Set intersectBody = vIntBodies(0)
                volInt = intersectBody.GetVolume

                ratioA = volInt / volA
                ratioB = volInt / volB

                ' Apply Logic
                If ratioA >= 0.5 And ratioB >= 0.5 Then
                    ApplyColor bodyA, swModel, 128, 0, 128 ' Purple
                    ApplyColor bodyB, swModel, 128, 0, 128
                ElseIf ratioA >= 0.5 Then
                    ApplyColor bodyA, swModel, 0, 0, 255   ' Blue (Contained)
                    ApplyColor bodyB, swModel, 255, 0, 0   ' Red (Container)
                ElseIf ratioB >= 0.5 Then
                    ApplyColor bodyB, swModel, 0, 0, 255   ' Blue (Contained)
                    ApplyColor bodyA, swModel, 255, 0, 0   ' Red (Container)
                End If
            End If
        Next j
    Next i

    swModel.GraphicsRedraw2
    MsgBox "Analysis Complete."
End Sub

Sub ApplyColor(swBody As SldWorks.Body2, swModel As SldWorks.ModelDoc2, R As Integer, G As Integer, B As Integer)
    Dim vColor As Variant
    vColor = swBody.GetMaterialPropertyValues2("")

    ' If no material props exist, initialize array
    If IsEmpty(vColor) Then ReDim vColor(8)

    vColor(0) = R / 255 ' Red
    vColor(1) = G / 255 ' Green
    vColor(2) = B / 255 ' Blue

    swBody.MaterialPropertyValues2 = vColor
End Sub

Me:

There is an error in this line: Object doesn 't support this property or method
volA = bodyA.GetVolume

Gemini:

Ah, good catch. My apologies—I slipped into “pseudo-code mode” for a second there. In the SolidWorks API, the IBody2 interface doesn’t actually have a direct .GetVolume method.

To get the volume, you have to use the GetMassProperties method, which returns an array of values. The volume is stored at index 3 of that array.

The Fix

Replace the volume calculation lines with this logic:
Dim vMassProps As Variant

' Get mass properties for Body A
vMassProps = bodyA.GetMassProperties("")
volA = vMassProps(3)

' Get mass properties for Body B
vMassProps = bodyB.GetMassProperties("")
volB = vMassProps(3)

' Get mass properties for the Intersection
vMassProps = intersectBody.GetMassProperties("")
volInt = vMassProps(3)

Updated Full Macro

Here is the corrected version of the core loop to ensure those properties are called correctly: (Cut off, he just rewrote the full macro with corrections.)

Me:

There is an error in this line: “Type mismutch”
volA = bodyA.GetMassProperties(“”)(3)

Gemini:

That “Type Mismatch” is likely happening because GetMassProperties returns an array of Doubles, and VBA can be finicky about accessing an index directly from a function return without explicitly handling it as a Variant first.

Also, if a body has zero volume (like a surface body or a corrupted solid), the API might return an empty variant, causing that specific error.

The Fix

We should assign the result to a Variant variable first, then check if it’s actually an array before trying to grab index 3.

Dim vMassProps As Variant
    ' Loop through body pairs...
' Get Mass Props for Body A safely
            vMassProps = bodyA.GetMassProperties("")
            If Not IsEmpty(vMassProps) Then
                volA = vMassProps(3)
            Else
                volA = 0
            End If

            ' Get Mass Props for Body B safely
            vMassProps = bodyB.GetMassProperties("")
            If Not IsEmpty(vMassProps) Then
                volB = vMassProps(3)
            Else
                volB = 0
            End If '.....

Me:

There is an error in this line: “Type mismutch”
vMassProps = bodyA.GetMassProperties(“”)

Gemini:

The “Type Mismatch” error on that specific line is almost certainly because of how GetMassProperties is being called. In the SolidWorks API, the argument for that method is not a string, but an Integer (Long) that represents the accuracy level (from 1 to 3). Using "" (a String) where a number is expected triggers the mismatch.

Additionally, we need to ensure the variables volA, volB, and volInt are declared as Double to handle the precision of the mass property data.

The Corrected Code:

Option Explicit

Sub AnalyzeOverlappingVolumes()
    Dim swApp As SldWorks.SldWorks
    Dim swModel As SldWorks.ModelDoc2
    Dim swPart As SldWorks.PartDoc
    Dim vBodies As Variant
    Dim i As Long, j As Long
    Dim bodyA As SldWorks.Body2, bodyB As SldWorks.Body2
    Dim copyA As SldWorks.Body2, copyB As SldWorks.Body2
    Dim intersectBody As SldWorks.Body2
    Dim volA As Double, volB As Double, volInt As Double
    Dim ratioA As Double, ratioB As Double
    Dim vMassProps As Variant

    Set swApp = Application.SldWorks
    Set swModel = swApp.ActiveDoc

    If swModel Is Nothing Or swModel.GetType <> swDocPART Then
        MsgBox "Please open a multibody part."
        Exit Sub
    End If

    Set swPart = swModel
    ' Get only solid bodies to avoid errors with surfaces
    vBodies = swPart.GetBodies2(swSolidBody, False)

    If IsEmpty(vBodies) Then Exit Sub

    For i = 0 To UBound(vBodies) - 1
        For j = i + 1 To UBound(vBodies)
            Set bodyA = vBodies(i)
            Set bodyB = vBodies(j)

            ' Use 1 for accuracy (standard)
            vMassProps = bodyA.GetMassProperties(1)
            volA = vMassProps(3)

            vMassProps = bodyB.GetMassProperties(1)
            volB = vMassProps(3)

            If volA > 0 And volB > 0 Then
                Set copyA = bodyA.Copy
                Set copyB = bodyB.Copy

                Dim errorRef As Long
                Dim vIntBodies As Variant
                ' Perform intersection (2)
                vIntBodies = copyA.Operations2(2, copyB, errorRef)

                If Not IsEmpty(vIntBodies) Then
                    Set intersectBody = vIntBodies(0)
                    vMassProps = intersectBody.GetMassProperties(1)
                    volInt = vMassProps(3)

                    ratioA = volInt / volA
                    ratioB = volInt / volB

                    ' Apply Colors
                    If ratioA >= 0.5 And ratioB >= 0.5 Then
                        SetColor bodyA, 128, 0, 128 ' Purple
                        SetColor bodyB, 128, 0, 128
                    ElseIf ratioA >= 0.5 Then
                        SetColor bodyA, 0, 0, 255   ' Blue (Contained)
                        SetColor bodyB, 255, 0, 0   ' Red (Container)
                    ElseIf ratioB >= 0.5 Then
                        SetColor bodyB, 0, 0, 255   ' Blue (Contained)
                        SetColor bodyA, 255, 0, 0   ' Red (Container)
                    End If
                End If
            End If
        Next j
    Next i

    swModel.GraphicsRedraw2
    MsgBox "Analysis Complete."
End Sub

Sub SetColor(swBody As SldWorks.Body2, R As Integer, G As Integer, B As Integer)
    Dim vColor(8) As Double
    ' Set RGB (0-1 range)
    vColor(0) = R / 255
    vColor(1) = G / 255
    vColor(2) = B / 255
    ' Set other properties to default/neutral
    vColor(3) = 1 ' Ambient
    vColor(4) = 1 ' Diffuse
    vColor(5) = 0.5 ' Specular
    vColor(6) = 0.4 ' Shininess
    vColor(7) = 0 ' Transparency
    vColor(8) = 0 ' Emission

    swBody.MaterialPropertyValues2 = vColor
End Sub

==========================
The code works, but I never hit the If Not IsEmpty(vIntBodies) Then condition.

Nothing is painted - nothing happened. :-1:

but the code works without errors.

1 Like
3

Now there is an option for GPT5.2.

Me:

VBA Solidworks. For a multibody part, analyze overlapping volumes. Bodies that are 50% or more by volume contained within another body should be colored blue. The body that contains the other body should be red. If two bodies mutually contain over 50% of each other, color them purple.

GPT5.2:

Here’s how you can do it with temporary bodies + boolean intersect + mass properties.

Idea in short

  1. Work in a multibody part (solid bodies only).
  2. For every body:
  • Get its volume via IMassProperty.IAddBodies + .Volume.
  1. For every pair of bodies:
  • Make temporary copies (IBody2.ICopy).
  • Intersect them with IBody2.Operations2(swBodyOperationType_Intersect, ...).
  • If there is an intersection body, get its volume the same way.
  • Compute:
    • fracIn(i,j) = V_intersection / V_i → “how much of body i lies inside body j”
    • fracIn(j,i) = V_intersection / V_j
  1. After all pairs are processed, for each body:
  • If there exists a body j such that fracIn(i,j) >= 0.5 and fracIn(j,i) >= 0.5 → purple (mutual ≥50%).
  • Else if it contains some other body (some fracIn(j,i) >= 0.5) → red.
  • Else if it is contained in some other body (some fracIn(i,j) >= 0.5) → blue.
  1. Color the bodies via IBody2.MaterialPropertyValues2.

VBA macro (SolidWorks)

Add a new module in a SW VBA macro and paste this:

Option Explicit

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc

    If swModel Is Nothing Then
        MsgBox "No active document.", vbExclamation
        Exit Sub
    End If

    If swModel.GetType <> swDocPART Then
        MsgBox "Active document must be a PART.", vbExclamation
        Exit Sub
    End If

    Dim swPart As SldWorks.PartDoc
    Set swPart = swModel

    Dim vBodies As Variant
    vBodies = swPart.GetBodies2(swBodyType_e.swSolidBody, True)

    If IsEmpty(vBodies) Then
        MsgBox "No solid bodies in this part.", vbExclamation
        Exit Sub
    End If

    Dim n As Long
    n = UBound(vBodies) - LBound(vBodies) + 1
    If n < 2 Then
        MsgBox "Need at least 2 solid bodies.", vbInformation
        Exit Sub
    End If

    Dim bodies() As SldWorks.Body2
    ReDim bodies(0 To n - 1)

    Dim i As Long, j As Long
    For i = 0 To n - 1
        Set bodies(i) = vBodies(LBound(vBodies) + i)
    Next i

    '--- volumes of original bodies
    Dim vols() As Double
    ReDim vols(0 To n - 1)

    For i = 0 To n - 1
        vols(i) = GetBodyVolume(swModel, bodies(i))
        If vols(i) <= 0# Then
            MsgBox "Body '" & bodies(i).Name & "' has zero volume. Aborting.", vbExclamation
            Exit Sub
        End If
    Next i

    '--- matrix: fracIn(i, j) = fraction of body i inside body j
    Dim fracIn() As Double
    ReDim fracIn(0 To n - 1, 0 To n - 1)

    '--- pairwise intersections
    For i = 0 To n - 2
        For j = i + 1 To n - 1

            Dim interVol As Double
            interVol = GetIntersectionVolume(swModel, bodies(i), bodies(j))

            If interVol > 0# Then
                fracIn(i, j) = interVol / vols(i)
                fracIn(j, i) = interVol / vols(j)
            End If

        Next j
    Next i

    '--- classify and color bodies
    Dim isContained As Boolean
    Dim contains As Boolean
    Dim isMutual As Boolean

    For i = 0 To n - 1

        isContained = False
        contains = False
        isMutual = False

        For j = 0 To n - 1
            If j <> i Then
                If fracIn(i, j) >= 0.5 Then
                    isContained = True
                End If
                If fracIn(j, i) >= 0.5 Then
                    contains = True
                End If
                If fracIn(i, j) >= 0.5 And fracIn(j, i) >= 0.5 Then
                    isMutual = True
                End If
            End If
        Next j

        If isMutual = True Then
            ' purple (mutual containment ≥ 50%)
            SetBodyColor bodies(i), 1#, 0#, 1#
        ElseIf contains = True Then
            ' container (contains another body ≥ 50%) -> red
            SetBodyColor bodies(i), 1#, 0#, 0#
        ElseIf isContained = True Then
            ' contained (is ≥ 50% inside another) -> blue
            SetBodyColor bodies(i), 0#, 0#, 1#
        End If

    Next i

    swModel.GraphicsRedraw2

    MsgBox "Overlap analysis and coloring finished.", vbInformation

End Sub

'==========================================================
' Volume of a (real or temporary) body using IMassProperty
'==========================================================
Private Function GetBodyVolume(swModel As SldWorks.ModelDoc2, _
                               swBody As SldWorks.Body2) As Double
    Dim swExt As SldWorks.ModelDocExtension
    Set swExt = swModel.Extension

    Dim swMass As SldWorks.MassProperty
    Set swMass = swExt.CreateMassProperty

    Dim vBodies(0) As Object
    Set vBodies(0) = swBody

    Dim ok As Boolean
    ok = swMass.IAddBodies(vBodies)   'IAddBodies supports temporary bodies too

    If ok = False Then
        GetBodyVolume = 0#
    Else
        GetBodyVolume = swMass.Volume
    End If
End Function

'==========================================================
' Volume of intersection between 2 bodies
'==========================================================
Private Function GetIntersectionVolume(swModel As SldWorks.ModelDoc2, _
                                       bodyA As SldWorks.Body2, _
                                       bodyB As SldWorks.Body2) As Double
    Dim tempA As SldWorks.Body2
    Dim tempB As SldWorks.Body2

    Set tempA = bodyA.ICopy
    Set tempB = bodyB.ICopy

    If tempA Is Nothing Or tempB Is Nothing Then
        GetIntersectionVolume = 0#
        Exit Function
    End If

    Dim errCode As Long
    Dim vRes As Variant
    vRes = tempA.Operations2(swBodyOperationType_e.swBodyOperationType_Intersect, _
                             tempB, errCode)

    If errCode <> 0 Then
        GetIntersectionVolume = 0#
        Exit Function
    End If

    If IsEmpty(vRes) Then
        GetIntersectionVolume = 0#
        Exit Function
    End If

    Dim interBody As SldWorks.Body2

    If IsArray(vRes) Then
        If UBound(vRes) >= LBound(vRes) Then
            Set interBody = vRes(LBound(vRes))
        End If
    Else
        Set interBody = vRes
    End If

    If interBody Is Nothing Then
        GetIntersectionVolume = 0#
        Exit Function
    End If

    GetIntersectionVolume = GetBodyVolume(swModel, interBody)
End Function

'==========================================================
' Color body via MaterialPropertyValues2 (RGB in [0..1])
'==========================================================
Private Sub SetBodyColor(swBody As SldWorks.Body2, _
                         r As Double, g As Double, b As Double)
    Dim vMat As Variant
    vMat = swBody.MaterialPropertyValues2

    Dim hasMat As Boolean
    hasMat = False

    If IsEmpty(vMat) Then
        ReDim vMat(0 To 8)
    Else
        hasMat = True
    End If

    ' RGB
    vMat(0) = r
    vMat(1) = g
    vMat(2) = b

    ' If there were no material values, set reasonable lighting defaults
    If hasMat = False Then
        vMat(3) = 0.8   ' Ambient
        vMat(4) = 0.8   ' Diffuse
        vMat(5) = 0.5   ' Specular
        vMat(6) = 0.5   ' Shininess
        vMat(7) = 0     ' Transparency
        vMat(8) = 0     ' Emission
    End If

    swBody.MaterialPropertyValues2 = vMat
End Sub

Me:

There is an error “Type mismutch” in Function GetBodyVolume this line: ok = swMass.IAddBodies(vBodies)

GPT5.2:

Yes, it was my mistake - I messed around with IMassProperty.IAddBodies in VBA in vain.

:white_check_mark: Root Cause

The error “Type mismatch” came from using:
ok = swMass.IAddBodies(vBodies)
IMassProperty.IAddBodies is picky about array typing and doesn’t play nicely with temporary bodies in VBA.
Better and simpler: use IBody2.GetMassProperties, which works for both real and temporary bodies (including ones from boolean operations).

:white_check_mark: Fix

1. Replace the entire GetBodyVolume function with this:

'==========================================================
' Volume of a (real or temporary) body using IBody2.GetMassProperties
'==========================================================
Private Function GetBodyVolume(swBody As SldWorks.Body2) As Double
    ' Density parameter = 1.0; we only need volume, not mass
    Dim vMassProps As Variant
    vMassProps = swBody.GetMassProperties(1#)

    If IsEmpty(vMassProps) Then
        GetBodyVolume = 0#
    Else
        ' vMassProps(3) = Volume in m^3 (doesn’t matter since we compare ratios)
        GetBodyVolume = CDbl(vMassProps(3))
    End If
End Function

Units are irrelevant because later we compute intersectionVolume / bodyVolume, so everything cancels.

2. Update the call sites

Change:
vols(i) = GetBodyVolume(swModel, bodies(i))
to:

vols(i) = GetBodyVolume(bodies(i))

And in the intersection function:

GetIntersectionVolume = GetBodyVolume(swModel, interBody)

to:

GetIntersectionVolume = GetBodyVolume(interBody)

You can also remove the unused swModel parameter from the intersection function signature if you want it clean. :+1: Result

Me:

Now the function GetIntersectionVolume generates an error “Method or data member not found” at the line: swBodyOperationType_e.swBodyOperationType_Intersect exactly: swBodyOperationType_Intersect

GPT5.2:

Nice, we’re chasing down all the little gremlins one by one :grinning_face_with_smiling_eyes:

That error:

“Method or data member not found” on swBodyOperationType_Intersect

means VBA simply doesn’t know what swBodyOperationType_Intersect is.
The enum value lives in the SolidWorks Constant Type Library (swconst), and right now that library is not referenced.

1. Fix the reference (recommended)

In the VBA editor:

  1. Press Alt + F11 (VBA editor).
  2. Go to Tools → References…
  3. Make sure these are ticked:
  • SolidWorks XX.X Type Library
  • SolidWorks Constant Type Library

Press OK.

After that, you can safely use either:

vRes = tempA.Operations2(swBodyOperationType_Intersect, tempB, errCode)

or

vRes = tempA.Operations2(swBodyOperationType_e.swBodyOperationType_Intersect, tempB, errCode)

Personally I’d simplify the call and drop the enum prefix:

vRes = tempA.Operations2(swBodyOperationType_Intersect, tempB, errCode)

as most SW API samples do.

Me:

In VBA editor Tools → References… ticked: SolidWorks 2025 Type Library SolidWorks 2025 Constant Type Library Now at the line: vRes = tempA.Operations2(swBodyOperationType_Intersect, tempB, errCode) have error: “Varible not define”. If I use other version: vRes = tempA.Operations2(swBodyOperationType_e.swBodyOperationType_Intersect, tempB, errCode) have error: “Method or data member not found”.

GPT5.2:

Yep, that combo of errors makes perfect sense now :+1:

  • “Variable not defined” → VBA can’t find a constant called swBodyOperationType_Intersect.
  • “Method or data member not found” → the enum swBodyOperationType_e exists, but there is no member called swBodyOperationType_Intersect.

That’s on me: I used the wrong enum name.

In swBodyOperationType_e, the “intersection” operation is called Common, not Intersect.

So you need:

swBodyOperationType_Common
' or fully qualified:
swBodyOperationType_e.swBodyOperationType_Common

Me:

swBodyOperationType_e.swBodyOperationType_Common - “Method or data member not found”. We’ve got the same error three times in a row in the same place. Maybe I need to help you somehow? Should I look up the correct answer somewhere? I don’t know, maybe in the help section?

GPT5.2:

You’re absolutely right to call this out — and thank you for your patience. The problem here is a classic “.NET vs VBA” brain mismatch on my side.

In VBA, you must not write swBodyOperationType_e.swBodyOperationType_Common.
That dotted syntax works in C#/VB.NET, but not in VBA, where enums from swconst are exposed as plain constants.

1. Fix the intersection call

Use this:

vRes = tempA.Operations2(swBodyOperationType_Common, tempB, errCode)

2. Correct GetIntersectionVolume function (full version)

Here is the function as it should look now, together with the GetBodyVolume you already fixed: ( I am cut it)

3. If you want to double-check the constant name yourself

Optional, but useful for your sanity:

  1. Press F2 in the VBA editor (Object Browser).
  2. In the top-left dropdown, pick “SolidWorks 2025 Constant Type Library”.
  3. In the search box, type: swBodyOperationType_.

You should see entries like:

  • swBodyOperationType_Add
  • swBodyOperationType_Subtract
  • swBodyOperationType_Common
  • etc.

You’ll notice there is no swBodyOperationType_Intersect, which is why that one failed.

Me:

I looked in the Object Browser, found SwConst there, and then searched for swBodyOperationType_e, which contains 3 constants:
Const SWBODYADD = 15903 (&H3E1F)
Const SWBODYCUT = 15902 (&H3E1E)
Const SWBODYINTERSECT = 15901 (&H3E1D)
Member of SwConst.swBodyOperationType_e

GPT5.2:

Perfect, that’s exactly the info we needed — and it explains all the chaos.

1. Fix the intersection call

Update GetIntersectionVolume like this:

Option Explicit

Dim swApp As SldWorks.SldWorks

Sub main()

    Set swApp = Application.SldWorks

    Dim swModel As SldWorks.ModelDoc2
    Set swModel = swApp.ActiveDoc

    If swModel Is Nothing Then
        MsgBox "No active document.", vbExclamation
        Exit Sub
    End If

    If swModel.GetType <> swDocPART Then
        MsgBox "Active document must be a PART.", vbExclamation
        Exit Sub
    End If

    Dim swPart As SldWorks.PartDoc
    Set swPart = swModel

    Dim vBodies As Variant
    vBodies = swPart.GetBodies2(swBodyType_e.swSolidBody, True)

    If IsEmpty(vBodies) Then
        MsgBox "No solid bodies in this part.", vbExclamation
        Exit Sub
    End If

    Dim n As Long
    n = UBound(vBodies) - LBound(vBodies) + 1
    If n < 2 Then
        MsgBox "Need at least 2 solid bodies.", vbInformation
        Exit Sub
    End If

    Dim bodies() As SldWorks.Body2
    ReDim bodies(0 To n - 1)

    Dim i As Long, j As Long
    For i = 0 To n - 1
        Set bodies(i) = vBodies(LBound(vBodies) + i)
    Next i

    '--- volumes of original bodies
    Dim vols() As Double
    ReDim vols(0 To n - 1)

    For i = 0 To n - 1
        vols(i) = GetBodyVolume(bodies(i))
        If vols(i) <= 0# Then
            MsgBox "Body '" & bodies(i).Name & "' has zero volume. Aborting.", vbExclamation
            Exit Sub
        End If
    Next i

    '--- matrix: fracIn(i, j) = fraction of body i inside body j
    Dim fracIn() As Double
    ReDim fracIn(0 To n - 1, 0 To n - 1)

    '--- pairwise intersections
    For i = 0 To n - 2
        For j = i + 1 To n - 1

            Dim interVol As Double
            interVol = GetIntersectionVolume(swModel, bodies(i), bodies(j))

            If interVol > 0# Then
                fracIn(i, j) = interVol / vols(i)
                fracIn(j, i) = interVol / vols(j)
            End If

        Next j
    Next i

    '--- classify and color bodies
    Dim isContained As Boolean
    Dim contains As Boolean
    Dim isMutual As Boolean

    For i = 0 To n - 1

        isContained = False
        contains = False
        isMutual = False

        For j = 0 To n - 1
            If j <> i Then
                If fracIn(i, j) >= 0.5 Then
                    isContained = True
                End If
                If fracIn(j, i) >= 0.5 Then
                    contains = True
                End If
                If fracIn(i, j) >= 0.5 And fracIn(j, i) >= 0.5 Then
                    isMutual = True
                End If
            End If
        Next j

        If isMutual = True Then
            ' purple (mutual containment = 50%)
            SetBodyColor bodies(i), 1#, 0#, 1#
        ElseIf contains = True Then
            ' container (contains another body = 50%) -> red
            SetBodyColor bodies(i), 1#, 0#, 0#
        ElseIf isContained = True Then
            ' contained (is = 50% inside another) -> blue
            SetBodyColor bodies(i), 0#, 0#, 1#
        End If

    Next i

    swModel.GraphicsRedraw2

    MsgBox "Overlap analysis and coloring finished.", vbInformation

End Sub

'==========================================================
' Volume of a (real or temporary) body using IBody2.GetMassProperties
'==========================================================
Private Function GetBodyVolume(swBody As SldWorks.Body2) As Double
    ' Density parameter = 1.0; we only need volume, not mass
    Dim vMassProps As Variant
    vMassProps = swBody.GetMassProperties(1#)

    If IsEmpty(vMassProps) Then
        GetBodyVolume = 0#
    Else
        ' vMassProps(3) = Volume in m^3 (doesn’t matter since we compare ratios)
        GetBodyVolume = CDbl(vMassProps(3))
    End If
End Function


'==========================================================
' Volume of intersection between 2 bodies
'==========================================================
Private Function GetIntersectionVolume(swModel As SldWorks.ModelDoc2, _
                                       bodyA As SldWorks.Body2, _
                                       bodyB As SldWorks.Body2) As Double
    Dim tempA As SldWorks.Body2
    Dim tempB As SldWorks.Body2

    Set tempA = bodyA.ICopy
    Set tempB = bodyB.ICopy

    If tempA Is Nothing Or tempB Is Nothing Then
        GetIntersectionVolume = 0#
        Exit Function
    End If

    Dim errCode As Long
    Dim vRes As Variant
    vRes = tempA.Operations2(SWBODYINTERSECT, tempB, errCode)

    If errCode <> 0 Then
        GetIntersectionVolume = 0#
        Exit Function
    End If

    If IsEmpty(vRes) Then
        GetIntersectionVolume = 0#
        Exit Function
    End If

    Dim interBody As SldWorks.Body2

    If IsArray(vRes) Then
        If UBound(vRes) >= LBound(vRes) Then
            Set interBody = vRes(LBound(vRes))
        End If
    Else
        Set interBody = vRes
    End If

    If interBody Is Nothing Then
        GetIntersectionVolume = 0#
        Exit Function
    End If

    GetIntersectionVolume = GetBodyVolume(interBody)
End Function

'==========================================================
' Color body via MaterialPropertyValues2 (RGB in [0..1])
'==========================================================
Private Sub SetBodyColor(swBody As SldWorks.Body2, _
                         r As Double, g As Double, b As Double)
    Dim vMat As Variant
    vMat = swBody.MaterialPropertyValues2

    Dim hasMat As Boolean
    hasMat = False

    If IsEmpty(vMat) Then
        ReDim vMat(0 To 8)
    Else
        hasMat = True
    End If

    ' RGB
    vMat(0) = r
    vMat(1) = g
    vMat(2) = b

    ' If there were no material values, set reasonable lighting defaults
    If hasMat = False Then
        vMat(3) = 0.8   ' Ambient
        vMat(4) = 0.8   ' Diffuse
        vMat(5) = 0.5   ' Specular
        vMat(6) = 0.5   ' Shininess
        vMat(7) = 0     ' Transparency
        vMat(8) = 0     ' Emission
    End If

    swBody.MaterialPropertyValues2 = vMat
End Sub

=============================== :pinching_hand:
And it worked, the logic is correct, but it looks like the colors are being assigned incorrectly and transparency is being applied, something that wasn’t mentioned. I think this can be fixed with a few more iterations. Overall, the result isn’t bad, and to be honest, I played along with GPT a little because I saw he was pretty close to the solution.

image674Ă—417 8.91 KB

3 Likes
