Why does flattening stand upright on some sheet metals?

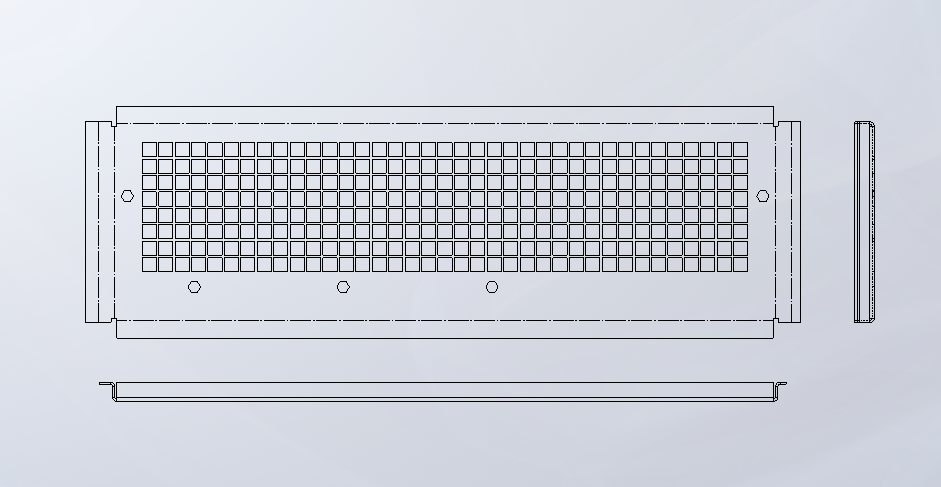

Even though I draw the part horizontally, the flattening is perpendicular to the page.
Is there something I don’t know? By what criteria does Sw choose vertical or horizontal?
Everything is normal for this drawing.
another example is horizontal straightening a part that needs vertical straightening.
The face that you selected with the dot on it is the one that stays stationary as the rest of the part moves. You can change that so that things look more normal.
From the Knowledge Base:
S-02232 : Why is the Flat-pattern drawing view for a sheet metal part not in the desired orientation?
Answer:
When SolidWorks generates a Flat-pattern view it shows the part in the Flat-pattern configuration. To determine the orientation of the model, SolidWorks uses its “Normal to” calculation.
To see the the orientation of the flat-pattern drawing view in the part file:
- open the part file
- edit the Flat-pattern feature and select the “fixed face” in the Parameters tab
- select the view Normal To
In case this automatic solution doesn’t give the desired orientation the following workaround can be used:
- insert a Flat- pattern drawing view in the drawing and delete it (this will generate the derived configuration in the part showing the model in the Flat pattern state).
- insert a new drawing view selecting the desired orientation
- right click the drawing view and select Properties
- choose the Flat-pattern derived configuration in the Configuration information tab.
I will try this.
