Hi all!

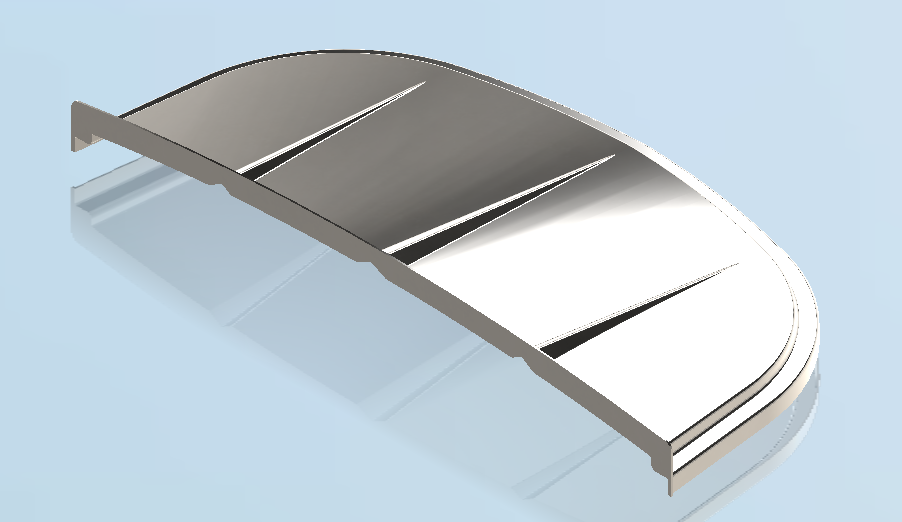

I have a project I’m working on for a customer that involves some compound curves that are a little outside my comfort zone. The part has to be shelled as pretty much the last operation, but it fails to shell, giving me the following error:

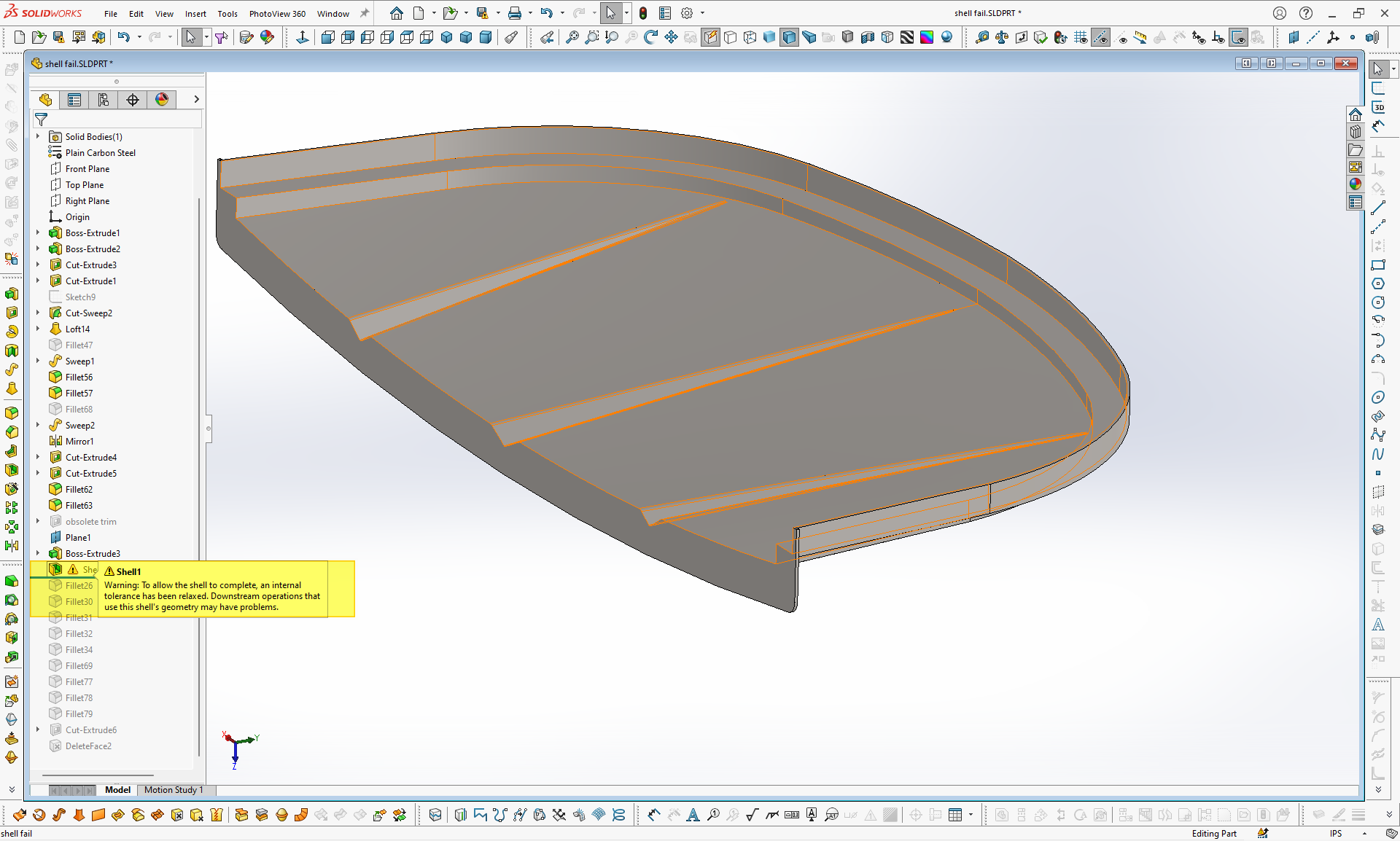

Error Shell1 The shell operation failed to complete. One of the faces may offset into an adjacent face, a small face may need to be eliminated, or one of the faces may have a radius of curvature which is smaller than the shell thickness. Please use Tools Check to find the minimum radius of curvature on appropriate faces. If possible, eliminate any unintended small faces or edges.
I’ve been beating my head over this one for two days, so it must be something obvious that I’m just missing.
Can someone take a look at this model and suggest what the problem is?
2 things. First, what thickness shell do you want to create?
Second, that lip on the bottom would probably be best placed after the shell.
I was able to shell it with Solid Edge at 0.055".

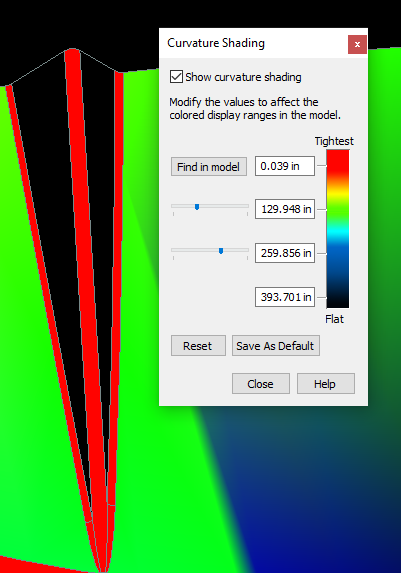

The tools in Solid Edge say that the tightest curvature is 0.039, so theoretically, that should be where it fails. You might have to use some different tactics like shell before you put the fillets on, or use offset faces to shell manually, or … there are a bunch of ways to skin that cat.
Do you want a symmetrical or asymmetrical part? Because I found this part is not symmetry at this location. That means opposite side does not have this line.
