So excited to make my first SW question on this forum!
So, we’re redesigning a power takeoff assembly and the main shaft has a tapered end that mates in a tapered shaft carrier/hub. How would I go about mating that together in SW? It’s not super critical, but the final fixed position of the shaft depends on those two mating surfaces and that sets the distance of the bearing surface on the shaft. I would like to see that everything has enough clearance space using the actual taper “interference”.
Sorry if that’s a bit long-winded. Using SW 2019 SP5.
Axes will align the tapers, but how do i set the depth? I haven’t actually had a chance to try anything yet. Got snagged for a hot issue that will be done in an hour.
[After axes alignment]
You can add planes to each part and mate them coincident or at a distance from each other.

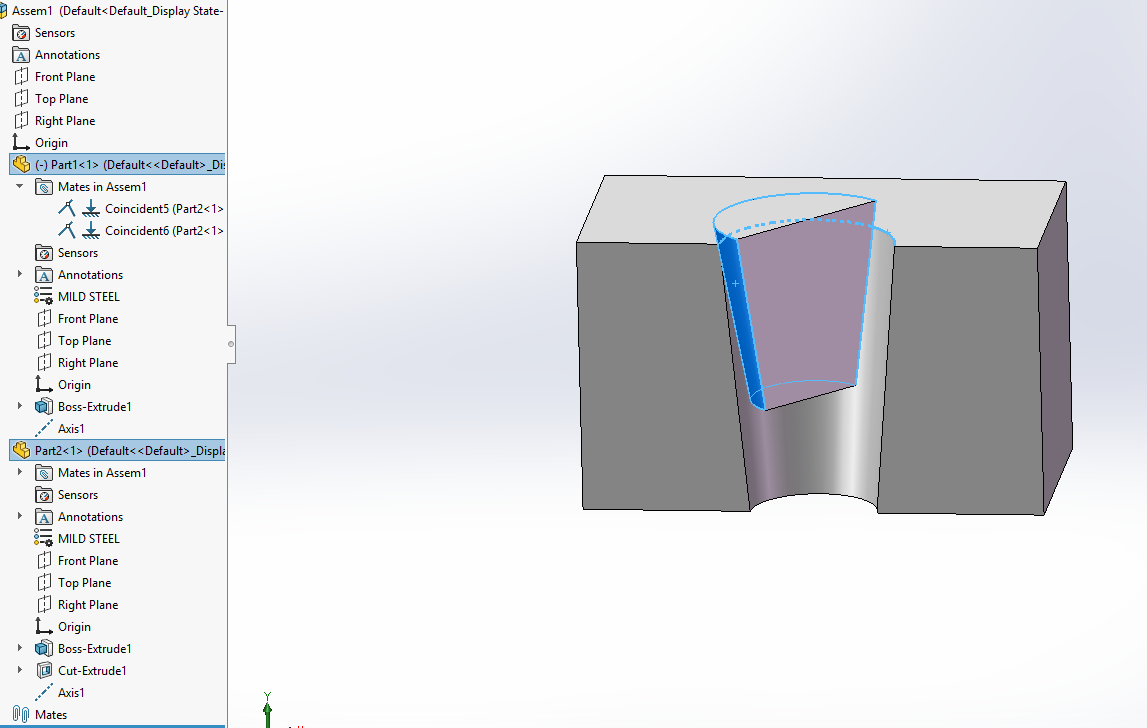

To mate male/female, you can select the circular female edge and mate coincident to the male’s face.
If the two tapers are the same you should be able to just do a coincident mate and done all but rotation.
If the tapers are different then the best way is axis and planes or axis and intersecting circle.

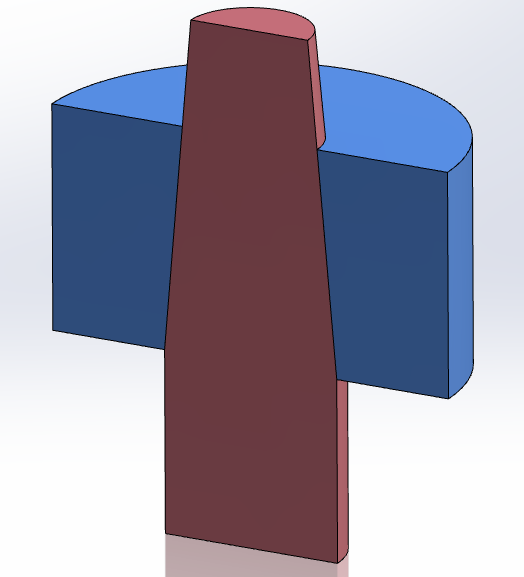

If the taper angles are identical, you can just use a single coincident mate between the circular edge at either end of the taper of one part and the conical face of the other part. SOLIDWORKS will work out where the two entities meet, even if it is outside the part boundaries:
Thanks to all who responded. They SHOULD be the same taper. My past issues my have been from tapers that were actually slightly different or some random SW issue with face selection order. Those options look like they should work. I’ll be back on this in a minute.
