Insert Part into Assembly

TK.421 · January 5, 2026, 10:28pm

I’ve been spinning my wheels all afternoon trying to figure out how to insert a part into the active assembly. I think i need to use AddComponent5, but the macro keeps puking on this line:

Set swInsertedComponent = Part.AddComponent5(fullPartPath, 0, "", False, "", 0, 0, 0)

What am i missing here?

For reference, here’s the rest of that bit of code. i got so tired of the trial and error that i recorded a macro inserting a part and copy/paste into mine. i’m sure i dont need all that stuff in there.

    Dim tmpObj As ModelDoc2
    Set tmpObj = swApp.OpenDoc6(fullPartPath, 1, 32, "", errors, longwarnings)
    Set swAssy = swApp.ActivateDoc3(AssemblyTitle, True, 0, errors)
    Dim swInsertedComponent As Component2
    Set swInsertedComponent = Part.AddComponent5(fullPartPath, 0, "", False, "", 0, 0, 0)
    swApp.CloseDoc fullPartPath
    Dim TransformData() As Double
    ReDim TransformData(0 To 15) As Double
    TransformData(0) = 1
    TransformData(1) = 0
    TransformData(2) = 0
    TransformData(3) = 0
    TransformData(4) = 1
    TransformData(5) = 0
    TransformData(6) = 0
    TransformData(7) = 0
    TransformData(8) = 1
    TransformData(9) = 0
    TransformData(10) = 0
    TransformData(11) = 0
    TransformData(12) = 1
    TransformData(13) = 0
    TransformData(14) = 0
    TransformData(15) = 0
    Dim TransformDataVariant As Variant
    TransformDataVariant = TransformData
    Dim swMathUtil As Object
    Set swMathUtil = swApp.GetMathUtility()
    Dim swTransform As Object
    Set swTransform = swMathUtil.CreateTransform((TransformDataVariant))
    boolstatus = swInsertedComponent.SetTransformAndSolve2(swTransform)

Thanks!

josh · January 5, 2026, 10:35pm

Did you read the Remarks section of the API help for AddComponent5?

TK.421 · January 6, 2026, 12:08pm

yes, a little more guidance and explanation in lay-mans terms are needed, hence my post

josh · January 6, 2026, 12:16pm

Is the part you’re trying to insert already open in SW?

TK.421 · January 6, 2026, 12:40pm

Yeah. earlier in the macro i create a new part and save it. the only open docs are the new part and the assy

josh · January 6, 2026, 1:36pm

There’s nothing wrong with any of the code you’ve posted here, so there’s nothing we can do to help diagnose what’s wrong. “Puking” also gives no indication of what error is ocurring.

So basically what you need to do is start from working code and work toward your non-working code until you figure out what’s causing the problem

Here is about the simplest implementation of AddComponent5 you can get. Start from here and add bits of your code step by step until you figure out what line causes the error.

Sub main()
    Dim swapp As SldWorks.SldWorks
    Dim swDoc As SldWorks.ModelDoc2
    Dim sPath As String
    Dim swComp As SldWorks.Component2

    Set swapp = Application.SldWorks
    Set swDoc = swapp.ActiveDoc
    sPath = "[your path here]"
    Set swComp = swDoc.AddComponent5(sPath, 0, "", False, "", 0, 0, 0)
    Debug.Print swComp Is Nothing
End Sub

TK.421 · January 6, 2026, 1:44pm

thanks, i’m doing just that as we speak. in hindsight i should’ve been clearer about the error - It was Object Doesnt Support This Property Or Method.

Irritating because I pasted the same code from the recorded macro which works just fine, only changing the file path to my variable path

josh · January 6, 2026, 1:55pm

That error would indicate that your variable named “Part” does not point to an assembly document. Where in your code do you have “Set Part = [something]”?

JimSculley · January 6, 2026, 2:11pm

This is why it is essential to post a complete example. The problem is often in the code you don’t post.

TK.421 · January 6, 2026, 2:12pm

bro….. i feel handicapped… i needed to have swAssy.addcomponent, not part.addcomp. im adding to an assembly. used the wrong variable

TK.421 · January 6, 2026, 2:14pm

it is. although this is something I should’ve caught yesterday. too many hours of staring at the debugger.

it’s funny, cause now I’m guilty of the same thing i get on guys on the powermill macro forum for…

TK.421 · January 6, 2026, 10:33pm

I have my part going into my assembly now. now I’m stuck on how to fix it. i’ve read through everything i can think of on that solidworks api and tried all different kinds of things, even recording and trying to use that code again… can i get one more assist here? thanks!

Option Explicit

Dim swApp As Object
Dim swAssy As SldWorks.AssemblyDoc
Dim AssemblyTitle As String
Dim vComps As Variant
Dim folderPath As String
Dim userPartName As String
Dim userPartNameWextension As String
Dim fullPartPath As String
Dim Part As Object
Dim swPart As SldWorks.PartDoc
Dim longstatus As Long
Dim longwarnings As Long
Dim boolstatus As Boolean
Dim errors As Long

Sub main()
    Set swApp = Application.SldWorks

    'Verify that an assy is the active document
    If swApp.ActiveDoc Is Nothing Or swApp.ActiveDoc.GetType <> swDocASSEMBLY Then
        MsgBox "Please open an assembly before running this macro.", vbCritical
        Exit Sub
    End If

    'Get the assy title
    Set swAssy = swApp.ActiveDoc
    AssemblyTitle = swAssy.GetTitle

    'Get file path of first component to save the new part to
    vComps = swAssy.GetComponents(False)
    If IsEmpty(vComps) Then
        MsgBox "The assembly does not contain any components yet.", vbCritical
        Exit Sub
    End If
    folderPath = Left$(vComps(0).GetPathName, InStrRev(vComps(0).GetPathName, "\"))

    'Enter new part name
    userPartName = InputBox("Enter the NEW part name (without extension):")
    userPartNameWextension = userPartName & ".SLDPRT"
    fullPartPath = folderPath & userPartNameWextension

    'New part document
    Set Part = swApp.NewDocument("C:\ProgramData\SolidWorks\SOLIDWORKS 2024\templates\Part.prtdot", 0, 0, 0)
    Set swPart = Part
    swApp.ActivateDoc2 "Part1", False, longstatus
    Set Part = swApp.ActiveDoc

    ' Save as new part
    longstatus = Part.SaveAs3(fullPartPath, 0, 0)

    ' Insert new part into the assembly
    swApp.OpenDoc6 fullPartPath, 1, 32, "", errors, longwarnings
    Set swAssy = swApp.ActivateDoc3(AssemblyTitle, True, 0, errors)
    Dim swInsertedComponent As Component2
    Set swInsertedComponent = swAssy.AddComponent5(fullPartPath, 0, "", False, "", 0, 0, 0)
    swApp.CloseDoc fullPartPath

    ' Fix the new part
    Set Part = swApp.ActiveDoc
    boolstatus = Part.Extension.SelectByID2(userPartName, "COMPONENT", 0, 0, 0, False, 0, Nothing, 0)
    Part.FixComponent
End Sub

josh · January 7, 2026, 2:48am

userPartName is not the right syntax to refer to the component in your SelectByID2. You need at least an instance number… Look at the code in the example for

Resolve All Lightweight Components and Fix a Component (VBA)

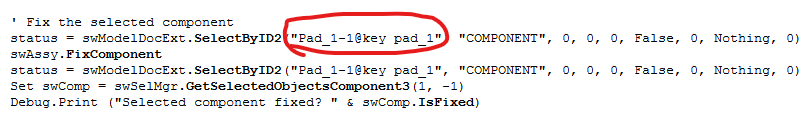

Your string needs to fully specify the component. Like this

TK.421 · January 7, 2026, 12:50pm

forget it. this is such a pain in the butt. all i want to do is fix the part that was just inserted in the assy. but you cant do that in one line of code. it seems you have to jump through hoops to do any one thing in here.. i’ve been at this for three hours now and getting nowhere. now i remember why the last time i wrote a macro in sw was the last time.

thank you all for the contributions on here

TK.421 · January 7, 2026, 1:22pm

I’m not an AI person by any means, but I thought i’ll plug it in and see what happens.. I might start doing that more if I need to fumble through the solidworks api ever again. i shouldve done that 10 hours ago!

Sub main()



    Dim swApp As SldWorks.SldWorks
    Dim swAssy As SldWorks.AssemblyDoc
    Dim swPart As SldWorks.PartDoc
    Dim swInsertedComp As SldWorks.Component2



    Dim assyTitle As String
    Dim comps As Variant
    Dim folderPath As String
    Dim partName As String
    Dim partPath As String



    Dim errors As Long
    Dim status As Boolean



    Set swApp = Application.SldWorks



    ' Make sure it's assy
    If swApp.ActiveDoc Is Nothing _
        Or swApp.ActiveDoc.GetType <> swDocASSEMBLY Then
        MsgBox "Please open an assembly before running this macro.", vbCritical
        Exit Sub
    End If



    Set swAssy = swApp.ActiveDoc
    assyTitle = swAssy.GetTitle



    ' Get file path
    comps = swAssy.GetComponents(False)
    If IsEmpty(comps) Then
        MsgBox "The assembly does not contain any components.", vbCritical
        Exit Sub
    End If



    folderPath = Left$(comps(0).GetPathName, _
                          InStrRev(comps(0).GetPathName, "\"))



    ' Ask for part name
    partName = Trim$(InputBox("Enter the NEW part name (without extension):"))
    If partName = "" Then Exit Sub



    partPath = folderPath & partName & ".SLDPRT"



    ' Create and save new part
    Set swPart = swApp.NewDocument( _
        "C:\ProgramData\SolidWorks\SOLIDWORKS 2024\templates\Part.prtdot", _
        0, 0, 0)



    swPart.SaveAs3 partPath, 0, 0



    ' Activate assembly
    swApp.ActivateDoc3 assyTitle, True, 0, errors
    Set swAssy = swApp.ActiveDoc



    ' Insert part into assembly
    Set swInsertedComp = swAssy.AddComponent5( _
        partPath, 0, "", False, "", _
        0#, 0#, 0#)



    ' Close part
    swApp.CloseDoc partName & ".SLDPRT"



    ' Fix inserted component
    If Not swInsertedComp Is Nothing Then
        swAssy.ClearSelection2 True
        status = swInsertedComp.Select4(False, Nothing, False)
        swAssy.FixComponent
    End If



    ' Rebuild assy
    swAssy.EditRebuild3



    ' Edit part mode
    If Not swInsertedComp Is Nothing Then
        swAssy.ClearSelection2 True
        swInsertedComp.Select4 False, Nothing, False
        swAssy.EditPart
    End If



End Sub
