No I weasled out of UNITAS.
have you seen all the stuff that we put on a 2d drawing? I have seen up to 80 parts in one view with no details for them other than the description.
Cleaning up 40 years of bad design and drafting.
2 Likes
I can see this going to be great sentences for resume.
Use iLogic to automate files update and cleanup.
What I was working on:
Hydro-electric turbine housing that need to fit through the inlet and weld inside.
1 Like
Designing shoestring-budget, (hopefully) self-standing, shelf, using as much COTS parts as possible.
1 Like
Hi,
I am working on abattoir product lines.
cheers,
Arek
1 Like
I mainly design boxes, made of boxes filled with insulation, framing, sound attenuators, and occasionally a door or access panel or seven.
This week. Working on a seesaw.
2 Likes
Hi,

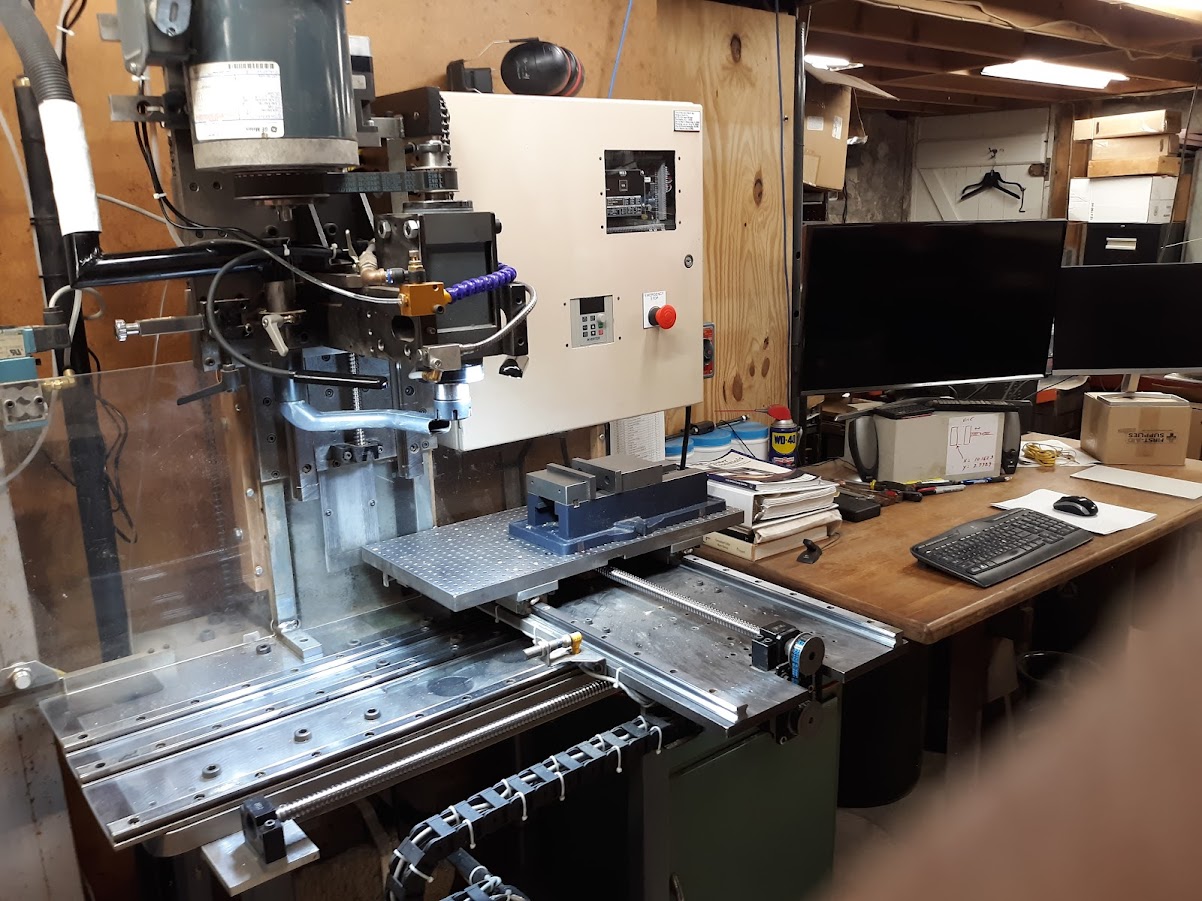

I’m so glad to see the forum back. I cannot say how much I have learned from the folks here over the years. Been retired for 2 years now, but just prior to retiring I started to build a DIY CNC in my basement. Not a big one but an X,Y,Z of 20 X 10 X 7in.
Back in 1980 I bought a house, a burned out brick shell of a house, built in 1880. It was missing the front doors. So around 1997 I designed up a pair of doors in CAD (2D Microstation) and then modeled them in Solidworks around 2005.
All the time with the intention of fabricating them myself, but not knowing how I was going to make the curved fancy moldings I wanted them to have.

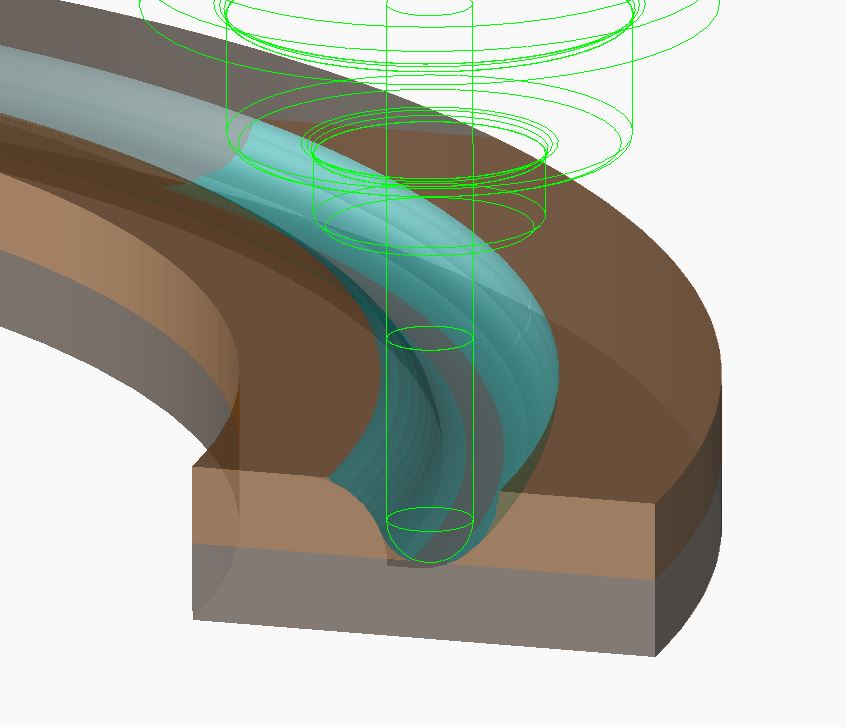

But I realized after getting my CNC up & running I could just use Solidworks CAM to program contour.
And then use the HawkRidge postprocesser to get the NC code for Mach4.

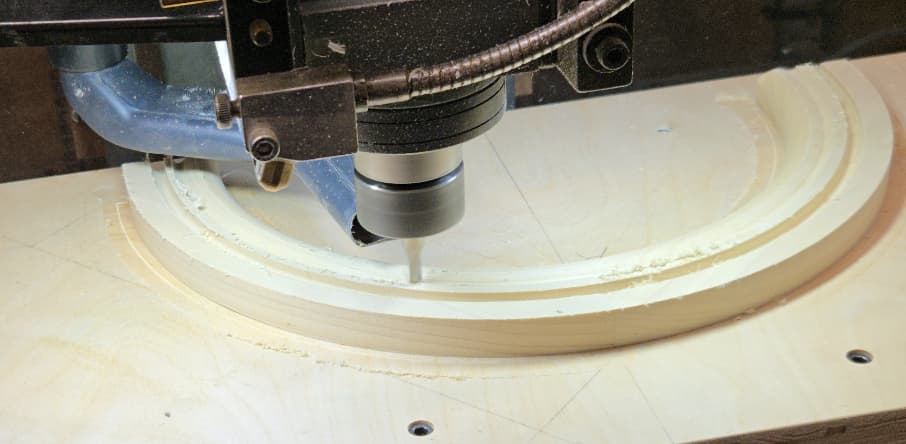

So many, many learning hours later & quite a few YouTube videos and trial & error I got the machine to cut the curved moldings.

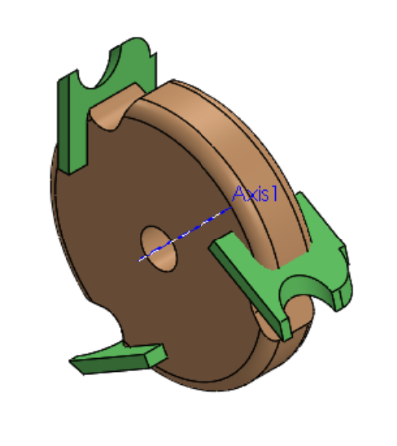

I also used Solidworks to design the cutters for a 3 head molding cutter to fab the straight sections.
So I have the house now almost restored the 1880 period with the exception of the front doors…
But that is coming soon.
Meanwhile I just wanted to thank all of you for your very informative postings & help.
Bob Conklin
PS Pardon me for more than one sentence.
7 Likes
